METART-WW13-Antique Brass Finish Designer Woven Wires

Specification

Material: Stainless Steel Grade 201, 304 , or 316

Type: Rigid Mesh

Opening Area: 33%

Estimated Square Meter Weight: Approx 7kg/㎡

Finish: Antique Brass Plated

Screen Width: Custom made

Screen Length: Custom made.

GET A QUOTE

Introduction

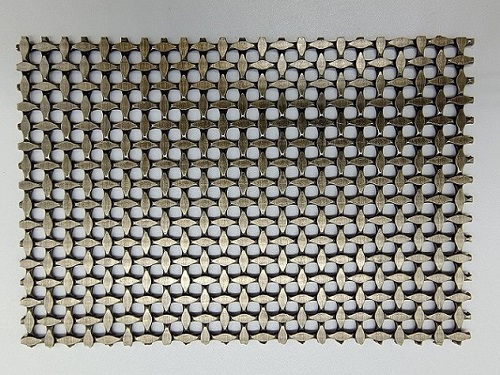

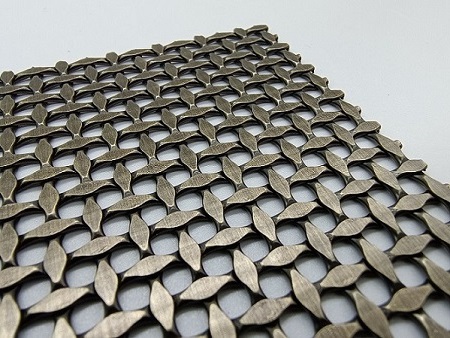

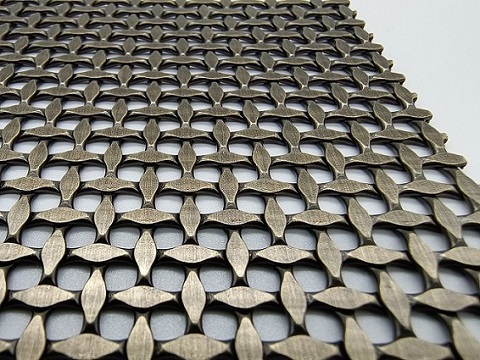

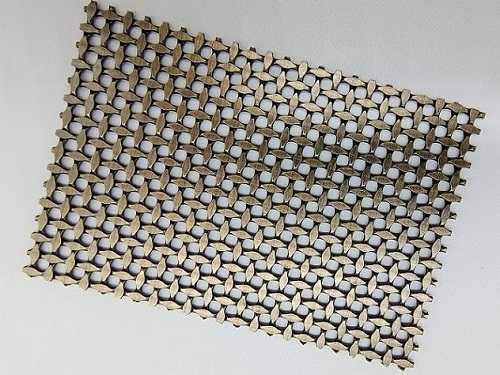

This exhibited pattern METART WW13 has an antique brass plated finish.

It is a woven decorative wire mesh with diamond crimps.

With this pattern, the weaved holes resemble circles. It may appear to be a perforated panel with round holes, but closer inspection reveals that it was made using an incredibly weaving technique.

It is a rigid variety of decorative woven mesh, but due to the pattern's design, it cannot be used for projects that call for security.

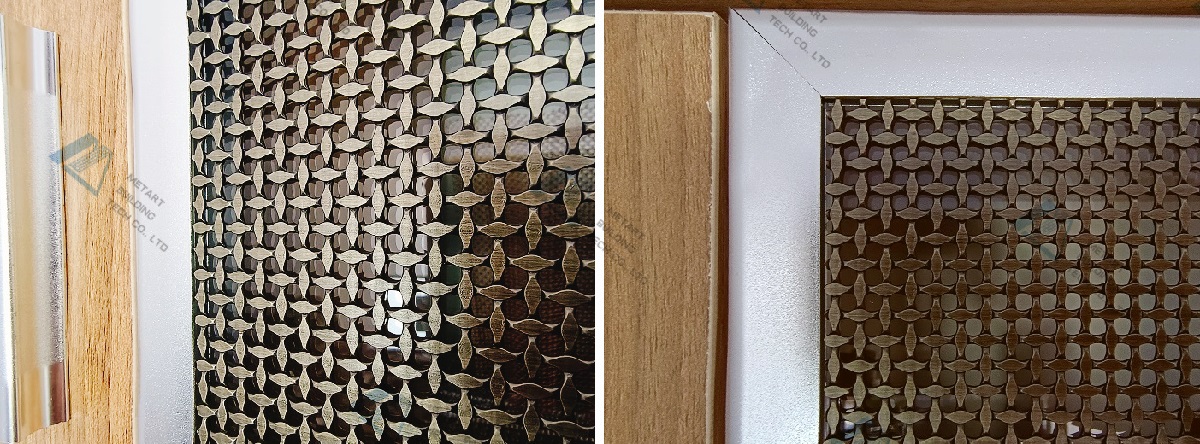

However, you can transform it into a really upscale kitchen cabinet grille door or use it to cover the glass on your office file cabinet door.

Additionally, you can use it as wall cladding metal screens, architectural glass metal inserts, partition screens for hotel lobbies, or privacy screens by a pool.

Specification Table

Material

Stainless Steel Grade 201,304 or 316.

Type

Rigid Decorative Wire Mesh

Wire Diameter Before Flattened

1.75mm

Clear Hole Size

3.5mm

Overall thickness of the fabric

1.46mm

Opening Area

33%

Privacy Rate

67%

Estimated Square Meter Weight

7kg/㎡

Finish

Antique Brass Plated

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, PVD vacuum titanium plated, Painted, PVDF Coated

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
