METART-WW01B-Luxurious Wall Cladding Wire Mesh

Specification

Material: Stainless steel Wire Strips 304 or SS316 grade + Real Brass Wires

Type: Rigid Decorative Wire Mesh

Opening Area:40%

Estimated Square Meter Weight: About 7.5kg/㎡

Finish: Mill Finish

Screen Width: Custom made

Screen Length: Custom made

GET A QUOTE

Introduction

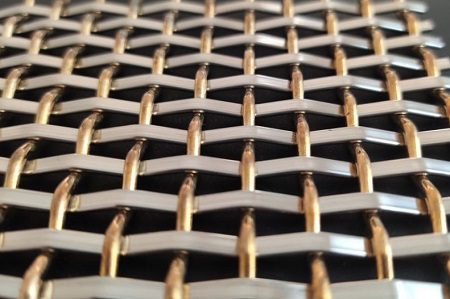

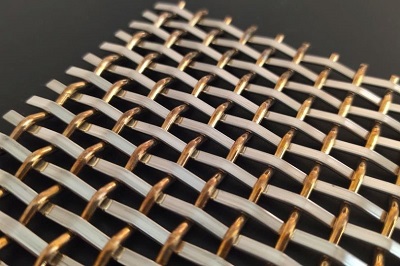

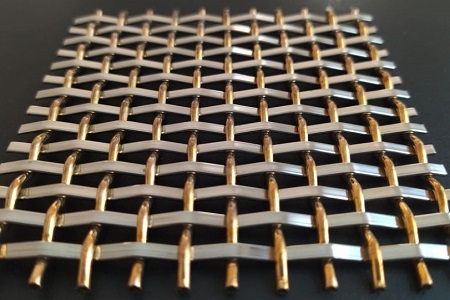

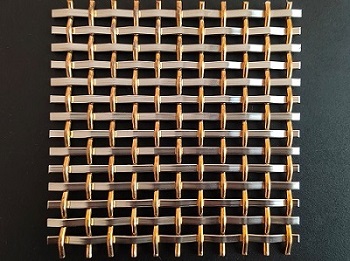

METART-WW01B woven wire mesh is a hybrid woven wire mesh pattern, using brass wire as warp wire, and flat stainless steel strips as weft wires.

This creative mixture gives the design an original and sumptuous look. It may be used as ornamentation in both private and public structures.

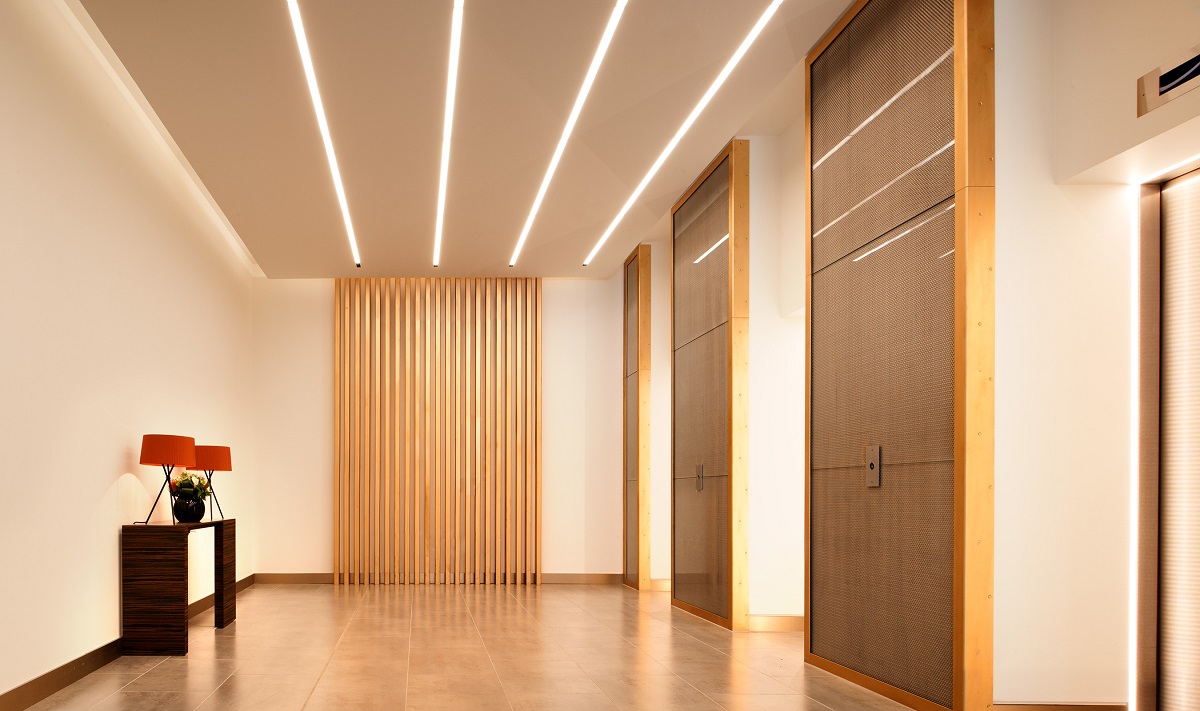

This design is commonly seen on wine bar decorative mesh screens, wall cladding screens, wire mesh used to decorate bottle shops, ornamental metal grilles for wine cabinets, and mesh used as an insert for stainless steel cabinet doors.

Stainless steel wire and copper wire or bronze wire and stainless steel wire are two more possible combinations.

Meanwhile, we're happy to accommodate your unique requirements, such as custom-made wire gauges and aperture sizes.

Specification Table.

Material

Stainless Steel Wire Strips 304 or SS316 optional + Real Brass Wires

Type

Rigid Decorative Wire Mesh

Flat Stainless Steel  Wire Width x Thickness

3mm x1.2mm

Roud Brass Wire Diameter

2mm

Clear Hole Size

Approx 3.2x6mm

Overall thickness of the screen

3.2mm

Opening Area

40%

Privacy Rate

60%

Square Meter Weight:

7.5kg/㎡

Finish

Mill Finish (original metal bright finish)

Custom made specifications and Mini order accepted.

Note:
All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication.
