METART-WW33SSRB-Lift Cabin Decorative Wire Mesh
Raw Material: SS304 or SS316 + True Brass Wires
Mesh Type: Rigid Architectural Wire Mesh
Opening rate: 0%
Estimated Square Meter Weight: Approx 14kg/㎡
Finish: Mill Finish
Sheet Size: Custom made

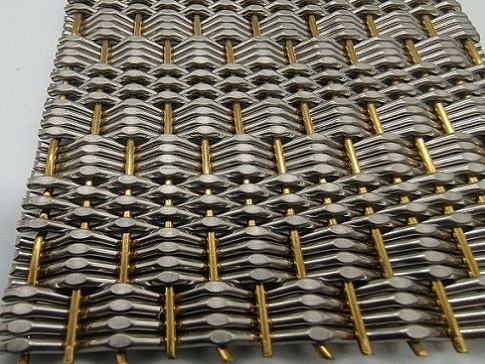

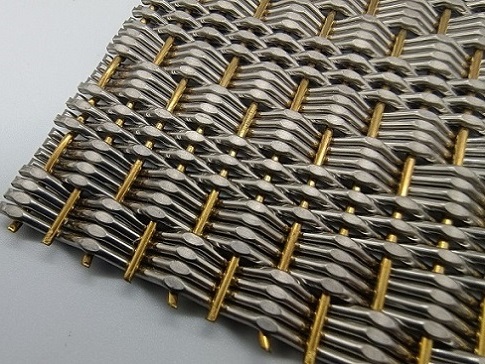

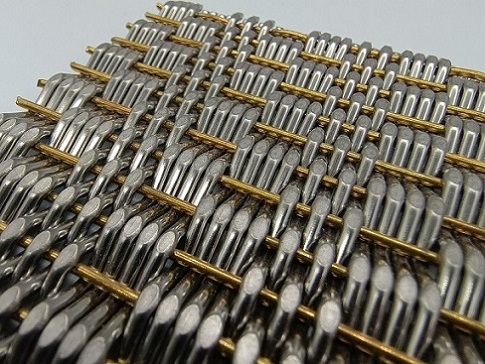

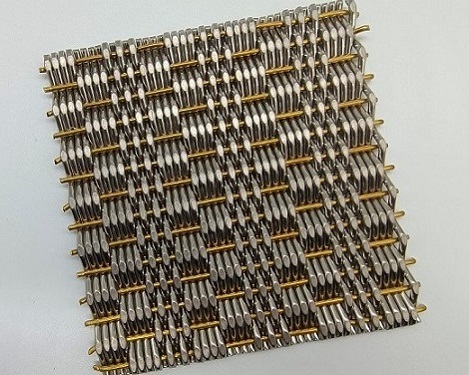

METART-WW33SSRB is a super solid ornamental woven wire mesh that is a combination of partially flattened stainless steel wires and straightened true brass wire rods. It is a perfect material for commercial wall cladding and lift cabin decoration.
Specification Table.
|
Raw Material |
SS304 or SS316 + True Brass Wire |
|
Mesh Type |
Rigid Architectural Wire Mesh |
|
Crimped Warp Wire Diameter: |
1.95mm |
|
Brass Weft Wire Diameter |
1.45mm |
|
Brass Wire Rod Pitch |
6.8mm |
|
Aperture Size |
0mm |
|
Overall thickness of the fabric |
4.5mm |
|
Opening Area |
0% |
|
Privacy Rate |
100% |
|
Estimated Square Meter Weight |
14kg/㎡ |
|
Finish |
Mill Finish. |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut |
|
All optional Finishes |
Mill Finish |
|
Customized specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
