METART-WW16–PVD Plated Decorative Wire Mesh

Specification

Material: Stainless Steel Grade 201,304,316

Type: Rigid Decorative Mesh

Opening Area: 42%

Estimated Square Meter Weight: Approx 8.2kg/㎡

Finish: PVD Titanium Plated - Rose Gold

Screen Width: Custom made

Screen Length: Custom made

GET A QUOTE

Introduction

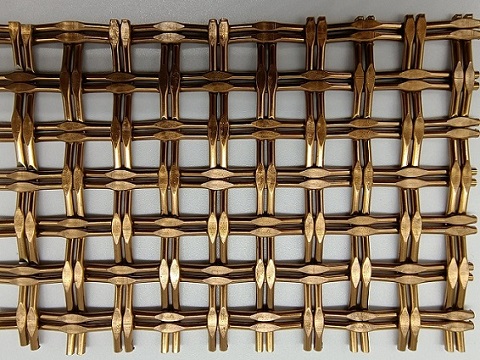

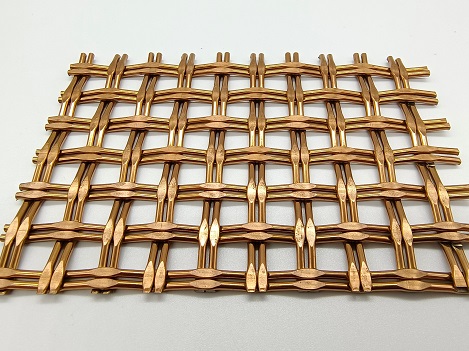

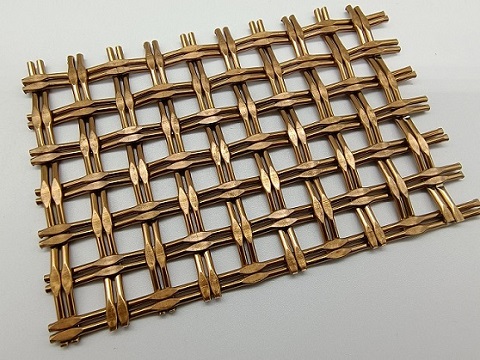

This is a sample of the woven wire pattern METART-WW16 that has been PVD plated with titanium rose gold.

This attractive stainless-steel double-wire woven mesh is a reinforcement version of WW15. While the wire gauge was maintained at the same level as in pattern WW15, the aperture size decreased significantly.

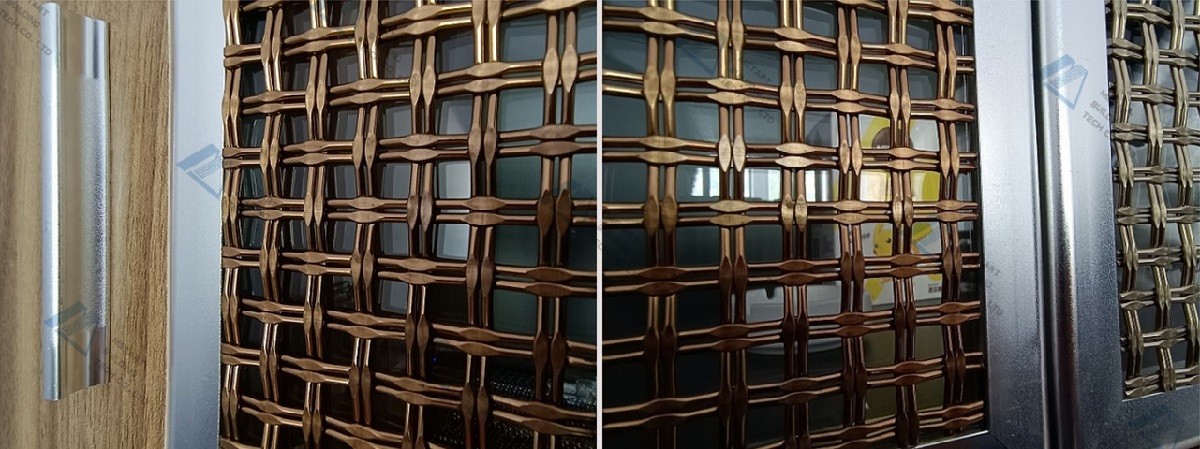

In this particular instance, the WW15 pattern of wire mesh is not as stiff as this wire mesh design. As a result of this, stainless steel architectural wire mesh is becoming increasingly popular for use in a variety of applications, including balustrading, balcony fencing, commercial railing systems, building facade cladding, wall cladding, room dividing, and many more.

Specification Table.

Material

Stainless Steel Grade 201,304,316.

Type

Rigid Decorative Wire Mesh

Wire Diameter (Single wire)

2mm

Clear Hole Size

7.2mm

Overall thickness of the fabric

2.8mm

Opening Area

42%

Privacy Rate

58%

Estimated Square Meter Weight

8.2kg/㎡

Finish

vacuum titanium golden plated

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
