METART-WW32-Antique Brass Plated Elevator Wall Cladding Ornamental Wire Mesh

Specification

Raw Material: SS201, SS304, SS316

Mesh Type: Rigid Architectural Cladding Mesh

Opening rate: 0%

Estimated Square Meter Weight: Approx 14.8kg/㎡

Finish: Mill Finish

Sheet Size: Custom made.

GET A QUOTE

Introduction

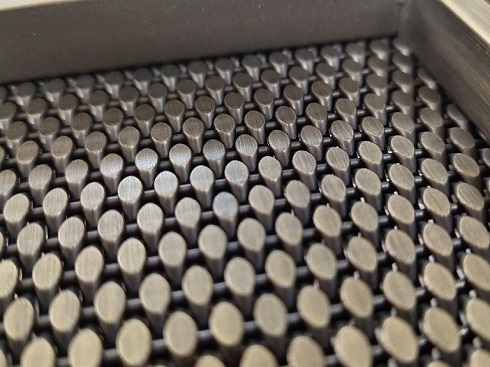

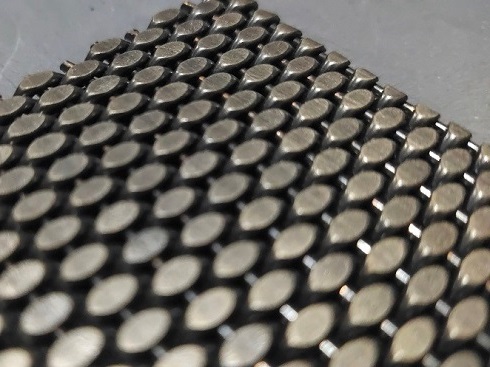

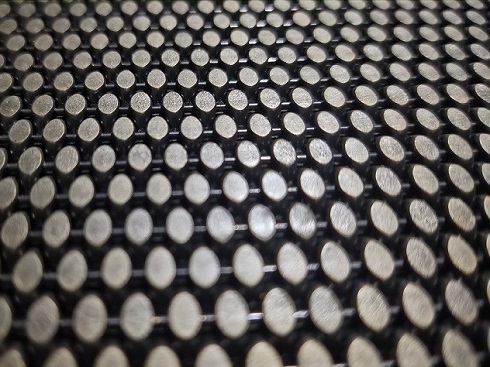

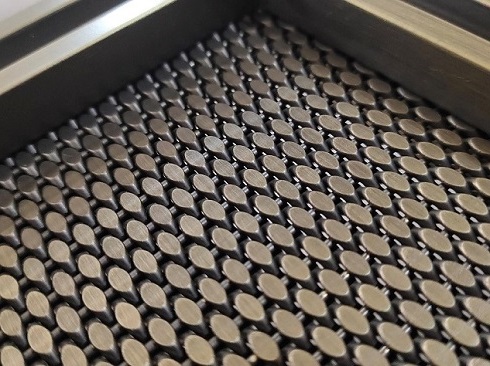

The exhibited sample is the antique brass plated finish of our ornamental wire mesh pattern METART-WW32.

As this architectural wire mesh has no opening at all.  It is mainly used as wall cladding material especially it is favored by designers and architects for commercial elevator decorations.
Specification Table.

Material

Stainless Steel 304 or 316, optional

Type

Rigid mesh

Wire Rod Diameter

1.5mm

Flattened Wire Diameter

2mm before flattened.

Wire Rod Pitch

5mm

Flatted wire pitch

2mm

Clear Hole Size

0mm

The total thickness of the fabric

3.5mm

Opening Area

0%

Block out

100%

Privacy Rate

100%

Weight

14.8kg/Square Meter

Finish

Antique Brass Plated.

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
