METART-WW10-Stainless Steel Ceiling Tile Wire Grilles

Specification

Material: Stainless Steel 201, 304, or marine grade 316

Type: Rigid Decorative Wire Mesh

Opening Area: 82%

Estimated Square Meter Weight: Approx 2.2kg/㎡

Finish: Mill Finish

Screen Width: Custom made

Screen Length: Custom made

GET A QUOTE

Introduction

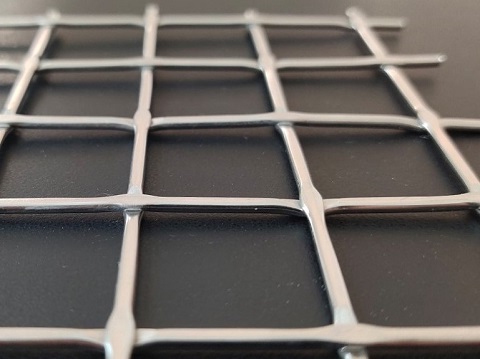

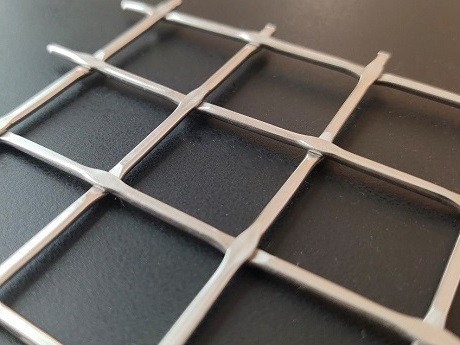

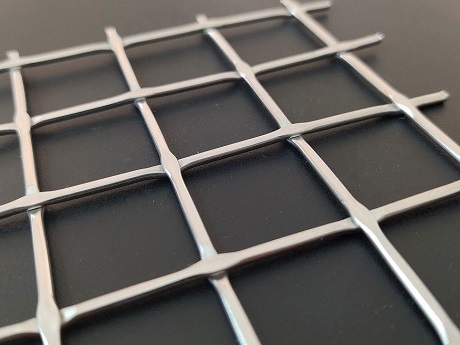

Decorative wire mesh pattern METART WW10 is made of 2mm wires in both warp and weft directions.

With an approx 2.2kg per square meter weight, it is a simple, classic, and affordable decorative woven wire pattern.

Due to the size of the aperture, this solution is not appropriate for use in a security setting. However, this metal mesh grille made of stainless steel may be utilized in a variety of applications, including suspended ceiling tile infill mesh, machine ventilation covers, shopfitting metal grilles, kitchen cabinet door wire grilles, and many more.
Specification Table.

Material

Stainless Steel  201,304 or 316.

Type

Rigid Architectural Wire Mesh

Wire Diameter

2mm

Clear Hole Size

20mm

Overall thickness of the fabric

1.6mm

Opening Area

82%

Block out

18%

Privacy Rate

18%

Estimated Square Meter Weight

2.2kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, PVD
Vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
