hello@metartmesh.comMETART-WW05-31210-Cabinets Wire Mesh Inserts
Material: Stainless Steel Grade 201,304 or 316.
Type: Rigid Decorative Wire Mesh
Opening Area: 59%
Estimated Square Meter Weight: Approx 4.3kg/㎡
Finish: Antique Brass Plating
Screen Width: Custom made
Screen Length: Custom made

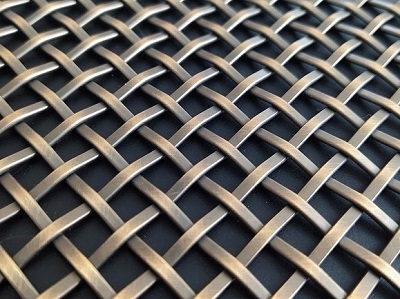

The most popular pattern in the WW05 series is METART WW05-31210. A 3mm flat wire strip, 1.2mm wire thickness, and 10mm aperture are represented by the number 31210.

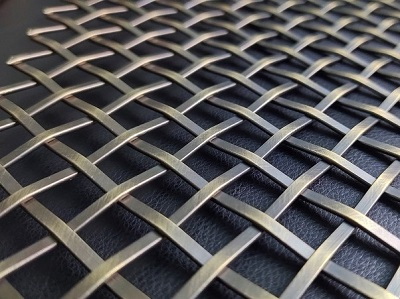

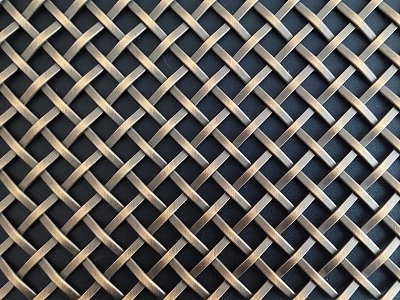

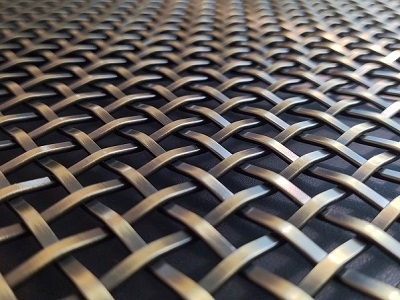

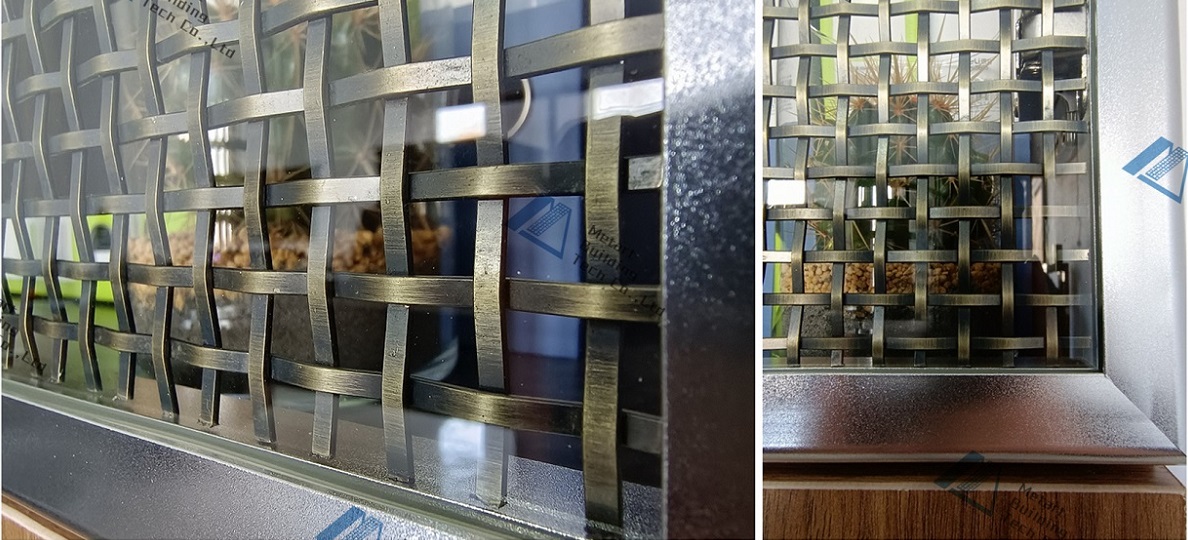

This brass finish has been treated to seem antique. Depending on your application setting, you might also select the bright brass plated color. For many home clients, replacing an outdated vent cover, converting an ordinary old cabinet door into a fashionable metal mesh door, or fabricating it into a living room divider screen is an economical pattern.
Specification Table.
Material |
Stainless Steel Grade 201,304 or 316. |
Type |
Rigid Decorative Wire Mesh |
Flat Wire Strip(Width x Thickness) |
3x1.2mm |
Clear Hole Size |
10mm |
Overall thickness of the fabric |
2.4mm |
Opening Area |
59% |
Privacy Rate |
41% |
Weight |
4.3kg/Square Meter |
Finish |
Antique Brass Plated |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut, Diamond Cut |
All optional Finish |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
Item # |
Flat Strip |
Clear Hole Dia. |
Opening Area |
Privacy Rate |
Weight |
Overall Thickness |
METART 05-61585 |
6x1.5mm |
8.5x8.5mm |
34% |
66% |
9.5KG / Square Meter |
3.4mm |
METART 05-41022 |
4x1mm |
2.2x2.2mm |
11% |
89% |
9.2KG / Square Meter |
3.2mm |
METART 05-31507 |
3x1.5mm |
7x7mm |
49% |
51% |
7.0 KG / Square Meter |
3.0mm |
METART 05-31005 |
3x1.0mm |
5x5mm |
39% |
61% |
5.8 KG / Square Meter |
2.0mm |
METART 05-31204 |
3x1.2mm |
4x4mm |
33% |
67% |
7.6KG / Square Meter |
2.5mm |
METART 05-31205 |
3x1.2mm |
5x5mm |
39% |
61% |
7.0 KG / Square Meter |
2.4mm |
METART 05-31207 |
3x1.2mm |
7x7mm |
49% |
51% |
5.6 KG / Square Meter |
2.4mm |
METART 05-31210 |
3x1.2mm |
10x10mm |
59% |
41% |
4.3 KG / Square Meter |
2.4mm |
METART 05-31510 |
3x1.5mm |
10x10mm |
59% |
41% |
5.4 KG / Square Meter |
3.0mm |
METART 05-25103 |
2.5x1.0mm |
3x3mm |
29.7% |
70.3% |
7.1 KG / Square Meter |
2.0mm |
METART 05-22134 |
2.2x1.0mm |
3.4x3.4mm |
36.8% |
63.2% |
6.1 KG / Square Meter |
2.0mm |
METART 05-22834 |
2.2x0.8mm |
3.4x3.4mm |
36.8% |
63.2% |
4.9 KG / Square Meter |
1.6mm |
METART 05-22084 |
2.2x0.8mm |
4x4mm |
37% |
63% |
4.0kg / Square Meter |
1.6mmm |
METART 05-18186 |
1.8x1.8mm |
6.2x6.2mm |
60% |
40% |
6.4KG / Square Meter |
3.6mm |
