METART-WW21-69138-Ornamental Wall Cladding Metal Screen

Specification

Raw Material: Stainless Steel Grade 201, 304, or 316

Mesh Type: Rigid Architectural Wire Mesh

Opening rate: 21%

Estimated Square Meter Weight: Approx 6.7kg/㎡

Finish: Mill Finish

Sheet Width: Custom made

Shee Length: Custom made

GET A QUOTE

Introduction

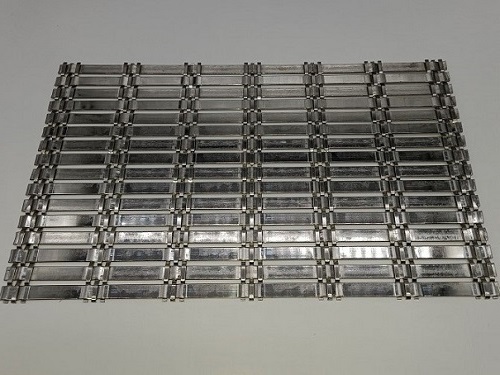

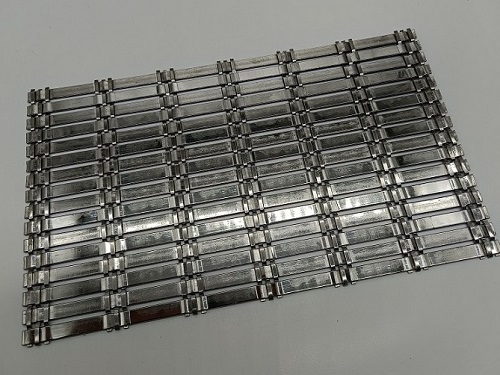

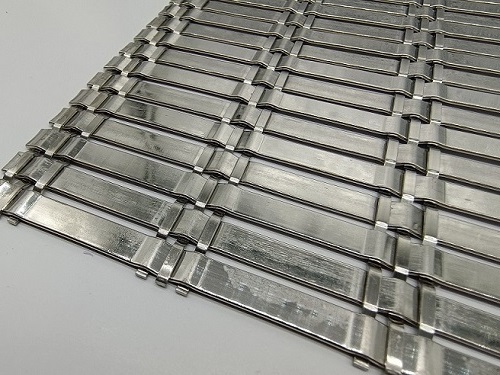

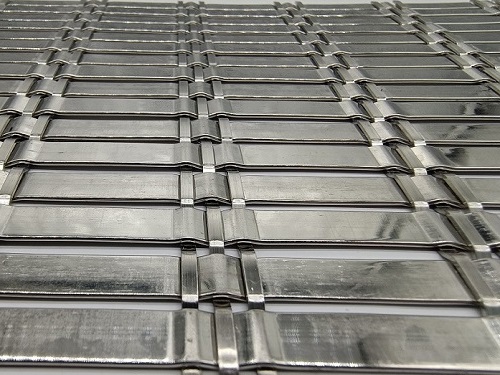

Architectural Wire Mesh pattern METART WW21-69138 is a reinforced variant of pattern WW21-41019.

The size of the smaller wire strips is exactly the same. But the bigger wire strip is wider.

With this reinforcement, this architectural wire screen becomes stronger in its strength as well as more privacy rate.

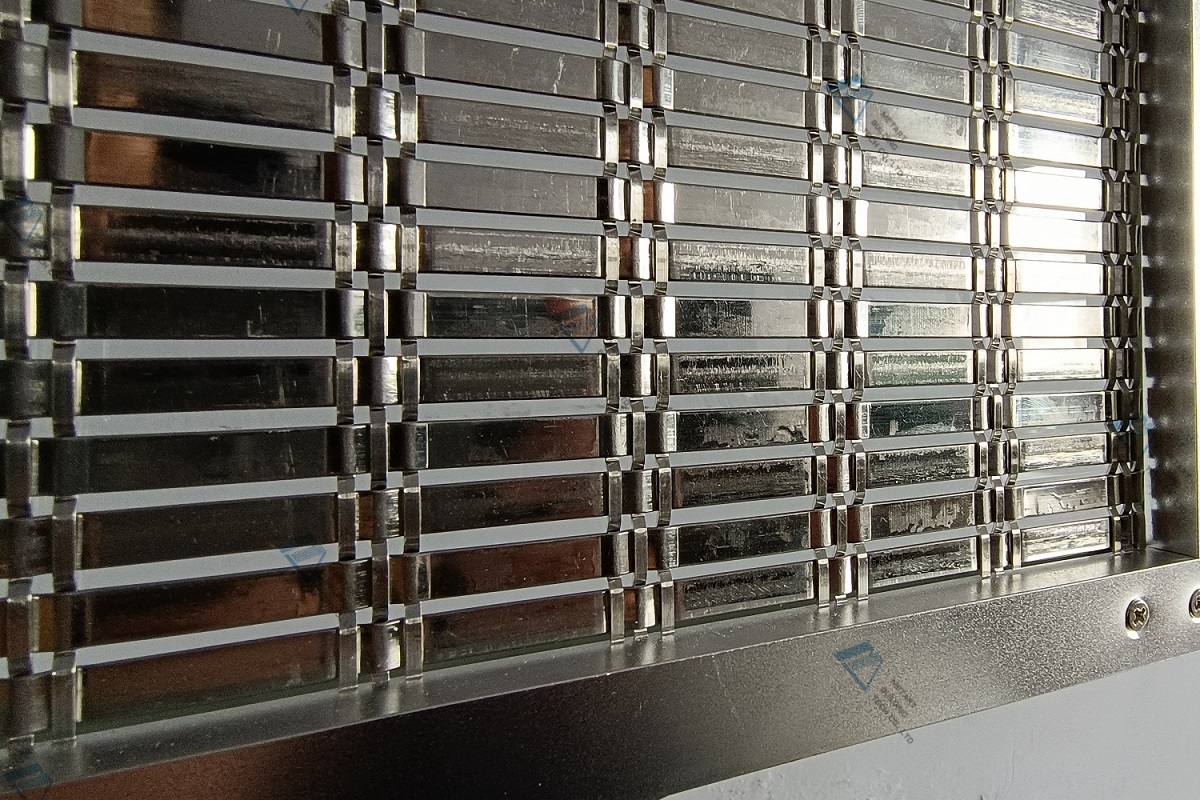

This stainless steel metal fabric can be used as architectural wall cladding wire mesh, privacy screen infill wire mesh, cabinetry door infills or swimming pool fencing infill panels.
Specification Table.

Raw Material

Stainless Steel 201,304 or 316

Mesh Type

Rigid Architectural Wire Mesh

Bigger Wire Strip(Widthxthickness)

6.9x1mm

Smaller Wire Strip(widthxthickness)

2.2x0.8mm

Bigger Strip Pitch

9.2mm

Smaller Strip Group Pitch

38mm

Overall thickness of the fabric

2.1mm

Opening rate

21%

Privacy Rate

79%

Estimated Square Meter Weight

6.7kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
