hello@metartmesh.comMETART-WW05-22134-Antique Copper Plating Cabinet Mesh
Material: Stainless Steel Wire Strip Grade 201, 304, 316.
Type: Rigid Mesh
Opening Area: 36.8%
Square Meter Weight: Approx 6.1kg/㎡
Finish: Antique Copper Plating
Screen Width: Custom made
Screen Length: Custom made
METART-WW05-22134 is a flat wire mesh that has been woven by modified looms. The product code #22134 has a square hole pattern and represents a wire with a diameter of 2.2 millimeters, a thickness of 1.0 millimeters, and a clear hole size of 3.4 millimeters.

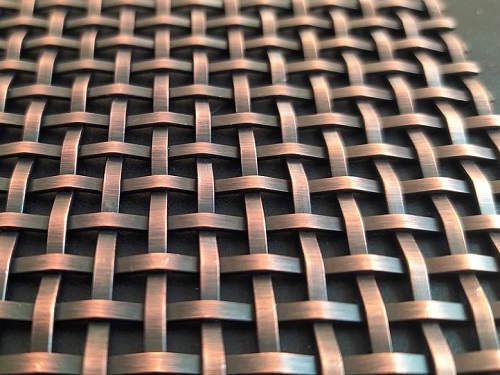

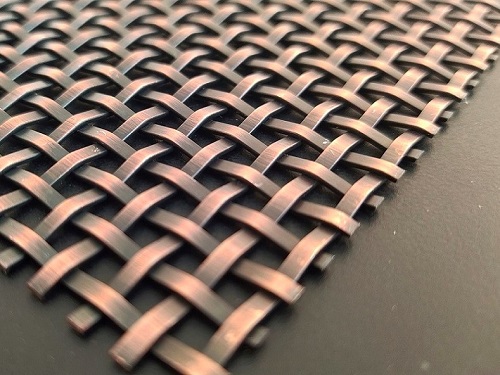

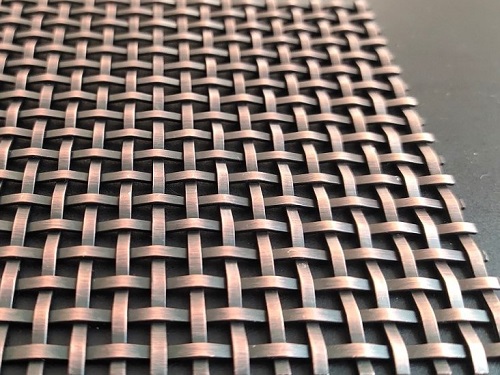

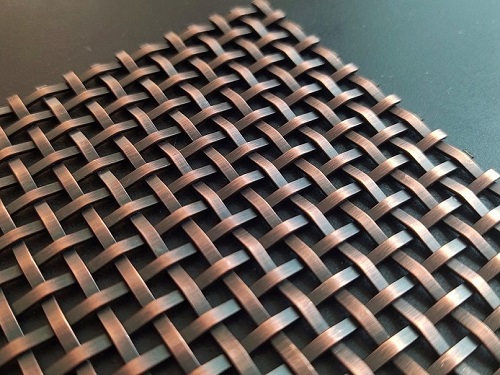

This ornamental wire grille has an antique copper-plated finish, as can be seen in the photographs that are located above this one here. The interior uses of this mesh often call for grade 304 or 201 stainless steel to be used in its manufacturing.
You have the option of selecting the color that was produced by the mill finish, as well as selecting a painted or stunning PVD-plated finish.
You have the option of framing this pattern of mesh to create a room divider or partition metal screens, or you could use it to build a grille mesh cabinet door instead.
In the meanwhile, this decorative wire design is suitable for usage in the commercial sector as architectural fencing infills, wine bar furnishing material, elegant creative furniture mesh, and so on.
Specification Table.
Material |
Stainless Steel Grade 201,304 or 316. |
Type |
Rigid Decorative Wire Mesh |
Flat Wire Strip (Width x Thickness) |
2.2x1mm |
Clear Hole Size |
3.4mm |
Overall thickness of the fabric |
2mm |
Opening Area |
36.8% |
Privacy Rate |
63.2% |
Estimated Square Meter Weight |
6.1kg/㎡ |
Finish |
Antique Copper Plating |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut, Diamond Cut |
All optional Finish |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
Please refer to the following table for all the specifications of METART WW05.
Item # |
Flat Strip |
Clear Hole Dia. |
Opening Area |
Privacy Rate |
Square Meter Weight |
Overall Thickness |
METART 05-61585 |
6x1.5mm |
8.5x8.5mm |
34% |
66% |
9.5KG |
3.4mm |
METART 05-41022 |
4x1mm |
2.2x2.2mm |
11% |
89% |
9.2KG |
3.2mm |
METART 05-31507 |
3x1.5mm |
7x7mm |
49% |
51% |
7.0 KG |
3.0mm |
METART 05-31005 |
3x1.0mm |
5x5mm |
39% |
61% |
5.8 KG |
2.0mm |
METART 05-31204 |
3x1.2mm |
4x4mm |
33% |
67% |
7.6KG |
2.5mm |
METART 05-31205 |
3x1.2mm |
5x5mm |
39% |
61% |
7.0 KG |
2.4mm |
METART 05-31207 |
3x1.2mm |
7x7mm |
49% |
51% |
5.6 KG |
2.4mm |
METART 05-31210 |
3x1.2mm |
10x10mm |
59% |
41% |
4.3 KG |
2.4mm |
METART 05-31510 |
3x1.5mm |
10x10mm |
59% |
41% |
5.4 KG |
3.0mm |
METART 05-25103 |
2.5x1.0mm |
3x3mm |
29.7% |
70.3% |
7.1 KG |
2.0mm |
METART 05-22134 |
2.2x1.0mm |
3.4x3.4mm |
36.8% |
63.2% |
6.1 KG |
2.0mm |
METART 05-22834 |
2.2x0.8mm |
3.4x3.4mm |
36.8% |
63.2% |
4.9 KG |
1.6mm |
METART 05-22084 |
2.2x0.8mm |
4x4mm |
37% |
63% |
4.0 KG |
1.6mm |
METART 05-18186 |
1.8x1.8mm |
6.2x6.2mm |
60% |
40% |
6.4KG |
3.6mm |
