METART-WW47-Hybrid Woven Designer Architectural Wire Mesh

Specification

Raw Material: SS304 or SS316 wires + True Brass Wires

Mesh Type: Rigid Architectural Wire Mesh

Opening rate: 50%

Estimated Square Meter Weight: Approx 8.8kg/㎡

Finish: Mill Finish (Original stainless steel and brass finish)

Sheet Size: Custom made

GET A QUOTE

Introduction

METART-WW47 is a decorative mesh pattern designed for architectural purposes.

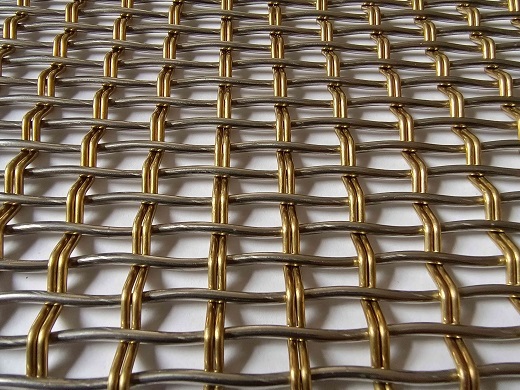

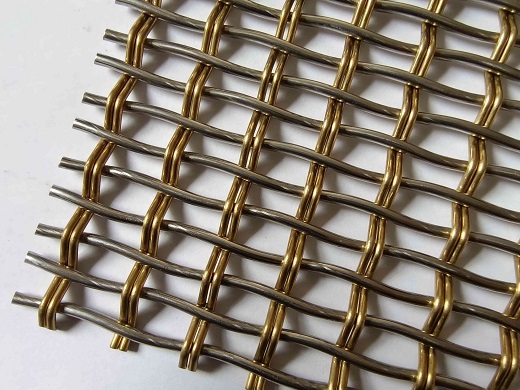

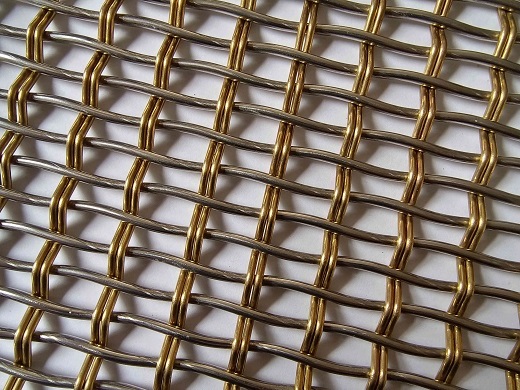

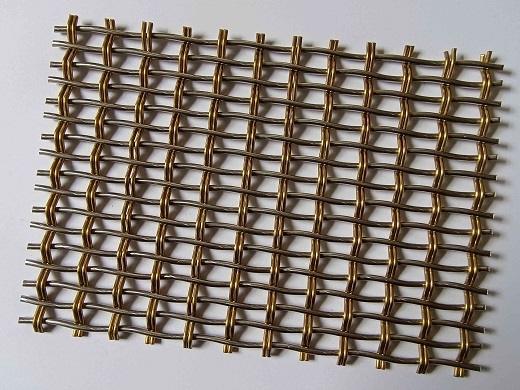

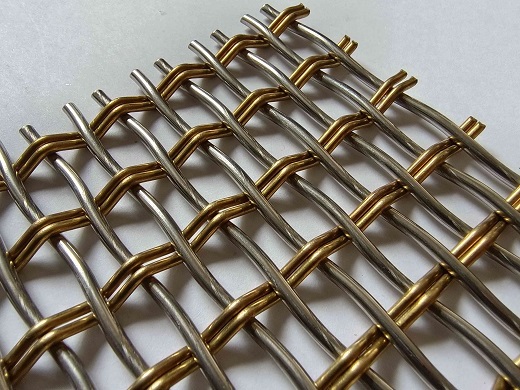

Made of double brass warp wire groups and twisted stainless steel weft wires, this mesh pattern offers a unique 3D appearance, reminiscent of a shoal of fish swimming in the ocean.

This rigid wire mesh pattern is made of 2.72mm stainless steel hard wires and double 1.95mm brass wires, making it super rigid and perfect for a variety of applications. Additionally, other customized wire combinations are accepted, including stainless steel plus copper and stainless steel plus bronze.

The METART-WW47 pattern can be used for ornamental balustrading infill mesh panels, commercial building fencing infill mesh, shopfitting partition screen panels, office divider screen mesh, and wall cladding architectural mesh, among others.

With a vertical hole centers of 8.1mm and horizontal hole centers of 16.4mm, the total thickness of the fabric is 5.2mm, offering 50% block-out and privacy rates.

This wire mesh pattern weighs approximately 8.8kg per square meter and comes in a mill finish, featuring the original stainless steel and brass colors.

Made of high-quality stainless steel 304 or marine grade ss316 wires and true brass wires, the METART WW47 is a unique and stylish option for any architectural project.

Specifications Table

Raw Material

SS304 or SS316 wires + True brass wires

Mesh Type

Rigid Architectural Wire Mesh

Double Warp Brass Wire Dia.

1.95mm x double wires

Single Weft SS Wire Dia.

2.72mm

Vertical Hole Centers

8.1mm

Horizontal Hole Centers

16.4mm

Overall thickness of the fabric

5.2mm

Opening rate

50%

Privacy Rate

50%

Estimated Square Weight

8.8kg/㎡

Finish

Mill Finish(Original stainless steel and brass color)

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finishes

Mill Finish(Original stainless steel and brass color)

Custom specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
