METART-WW26AL-B-Architectural Aluminium Wall Cladding Wire Mesh

Specification

Raw Material: Aluminum Alloy Wires

Mesh Type: Rigid Architectural Aluminum Mesh

Opening rate: 41%

Estimated Square Meter Weight: Approx 2.4kg/㎡

Finish: Mill Finish

Sheet Size: Custom made.

GET A QUOTE

Introduction

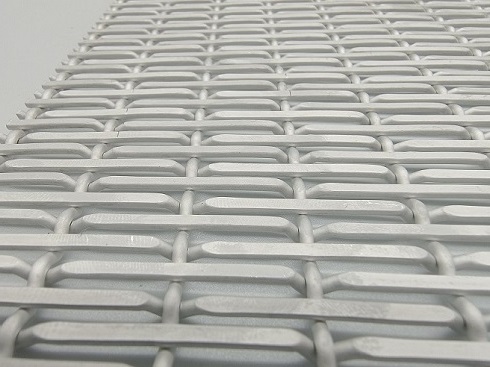

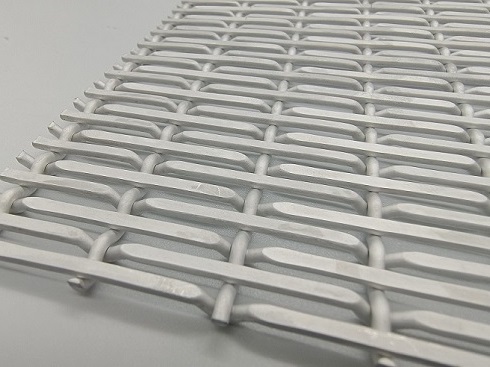

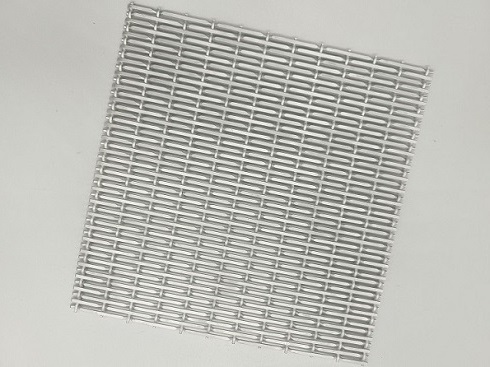

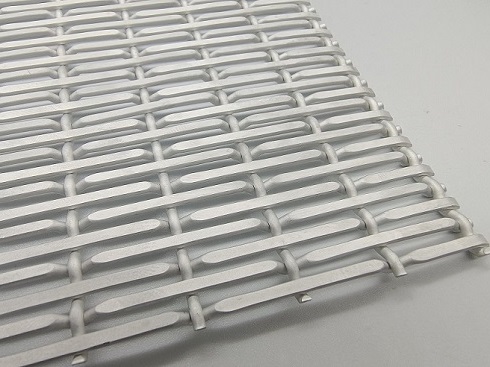

The METART WW26ALB pattern is identical to the WW26AL pattern. It is simply the reverse of the design. As the two sides of this design have different aesthetics, some customers may believe them to be separate patterns. This woven wire pattern is perfect for cladding mesh panels on both sides.
Specifications Table.

Raw Material	Aluminum Alloy Grade 5154, and 6061 optional
Mesh Type	Rigid Architectural Wire Mesh
Wire Strip Before Flattened	2mm
Wire Rod Diameter	2mm
Clear Hole Size	1.8x16mm
Strip Pitch	4mm
Rod Pitch	17.5mm
Overall thickness of the fabric	3.8mm
Opening rate	41%
Privacy Rate	59%
Estimated Square Meter Weight	2.4kg/㎡
Finish	Mill Finish
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut Only
All optional Finishes	Mill Finish, Painted, PVDF Painted
Custom made specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
