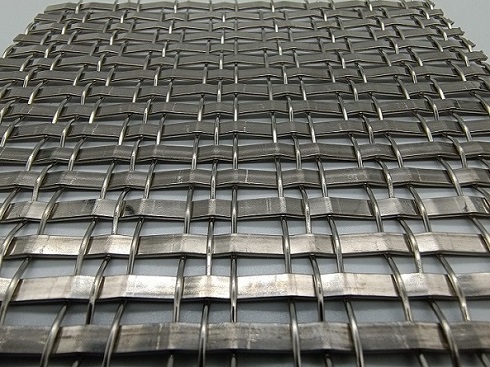

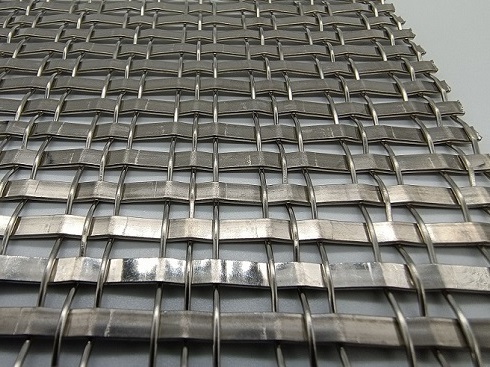

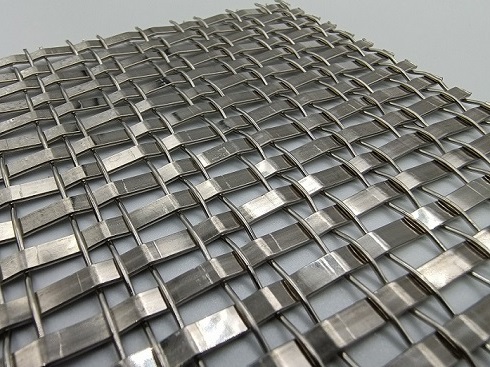

hello@metartmesh.comFlexible Suspended Ceiling Stainless Wire Mesh-METART-WW19G
Raw Material: Stainless Steel Grade 201, 304, 316.
Mesh Type: Rigid Architectural Mesh
Opening rate: 36%
Estimated Square Meter Weight: Approx 4.8kg/㎡
Finish: Mill Finish (Gloss Strips)
Sheet Width: Custom made.
Sheet Length: Custom made.
The specifications of METART WW19G are exactly identical to those of WW19M. Here, the letter "G" stands for the flat strip's gloss surface. Either of these two patterns is available.

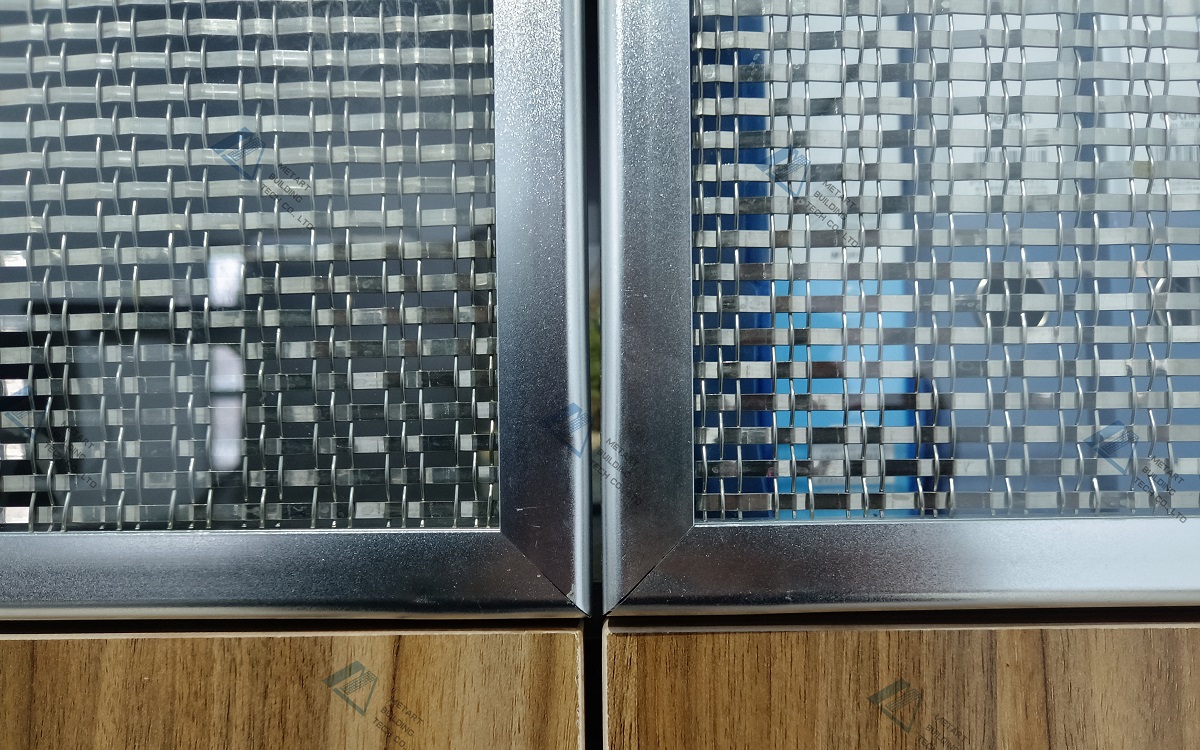

This woven designer wire mesh is quite simple but elegant looking. It is frequently used in building decorations, including office divider infill screen mesh, balustrading infill mesh panels, cabinetry architectural wire grilles, cupboard door mesh replacement, closet door wire mesh, decorative wire mesh for furniture, wall cladding architectural mesh screens, sun control facade screen mesh, and carpark shading wire mesh.
This wire mesh design is usable right away in its natural stainless steel shade. Please get in touch with one of our sales engineers if you require a more elaborate color. We can have it copper-plated, brass-plated, PVD titanium-plated, plain-painted, or PVDF painted in a variety of colors to suit your project's needs.
Specification Table.
Raw Material |
Stainless Steel Grade 201, 304, 316. |
Type |
Half Rigid Architectural Mesh |
Wire Strip |
4x1mm |
Wire Rod Diameter |
0.95mm |
Wire Strip Pitch |
8mm |
Wire Rod Pitch |
4.4mm |
Wire Rod Group Pitch |
15.8 |
The total thickness of the fabric |
2.4mm |
Opening Area |
36% |
Block out |
64% |
Privacy Rate |
64% |
Weight |
4.8kg/Square Meter |
Finish |
Stainless Steel Mill Finish-Gloss |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut, |
All optional Finish |
Mill Finish ( Original stainless steel bright finish), |
Customized specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
