hello@metartmesh.comMETART-WW26-Architectural Stainless Steel Wire Mesh
Raw Material: Stainless Steel Grade 201, 304 or 316
Mesh Type: Rigid Architectural Wire Mesh
Opening Rate: 46%
Estimated Square Meter Weight: Approx 6kg/㎡
Finish: Mill Finish
Sheet Size: Custom made.

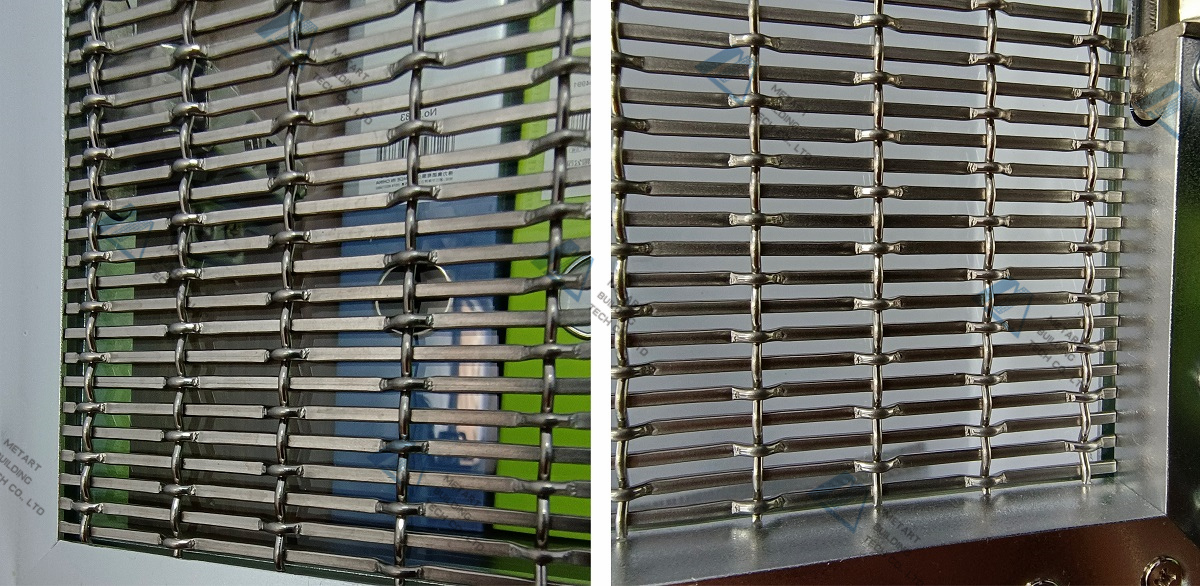

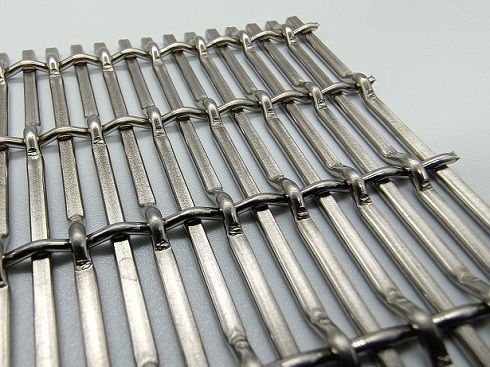

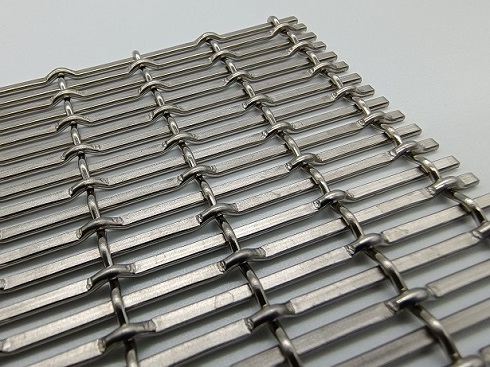

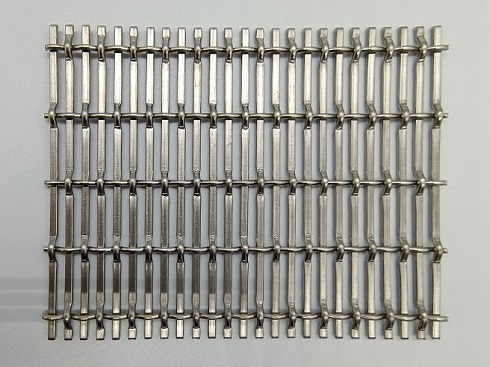

METART-WW26 is a classic architectural wire mesh that is made of horizontally pre-flattened wiers and vertically regular round crimped wires.
This mesh can be used for wall cladding projects, partition screen infills, cabinet door inserts, and many other ornamental projects.
Specification Table.
Raw Material |
Stainless Steel Grade 201, 304,316 or Aluminum Alloy |
Mesh Type |
Rigid Architectural Wire Mesh |
Wire Strip |
2.2x1.2mm |
Wire Rod Diameter |
1.5mm |
Clear Hole Size |
2x16mm |
Strip Pitch |
4mm |
Rod Pitch |
17.5mm |
Overall thickness of the fabric |
3.1mm |
Opening Area |
46% |
Privacy Rate |
54% |
Estimated Square Meter Weight |
6kg/㎡ |
Finish |
Stainless Steel Mill Finish |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut Only |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
