Ornamental Divider Screen Infill Wire Mesh-METART-WW18SSRB
Raw Material: Stainless Steel 304 or 316+True Brass Wires
Mesh Type: Rigid Decorative Mesh
Opening Area: 51%
Estimated Square Meter Weight: Approx 9.3kg/㎡
Finish: Mill Finish
Sheet Width: Custom made
Sheet Length: Custom made

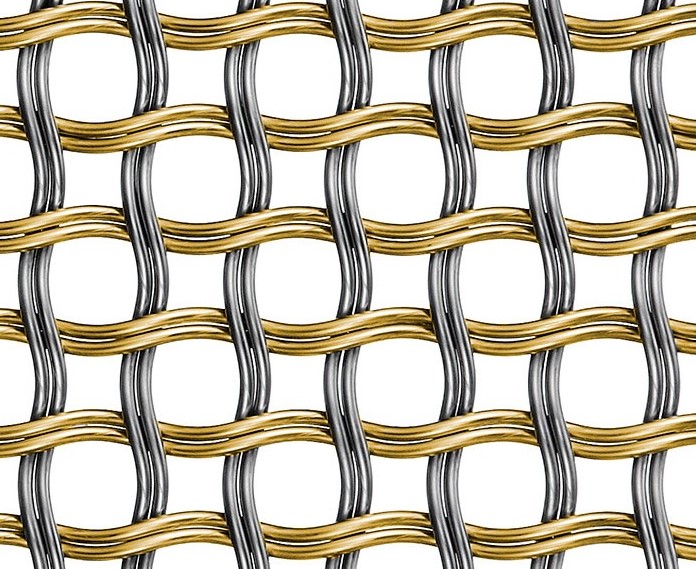

METART WW18SSRB is a hybrid woven wire mesh, that is made of 50 %stainless steel wires and 50% real brass wires.
This stylish hybrid weaving style offers an even more stunning appearance than pure brass wire mesh.

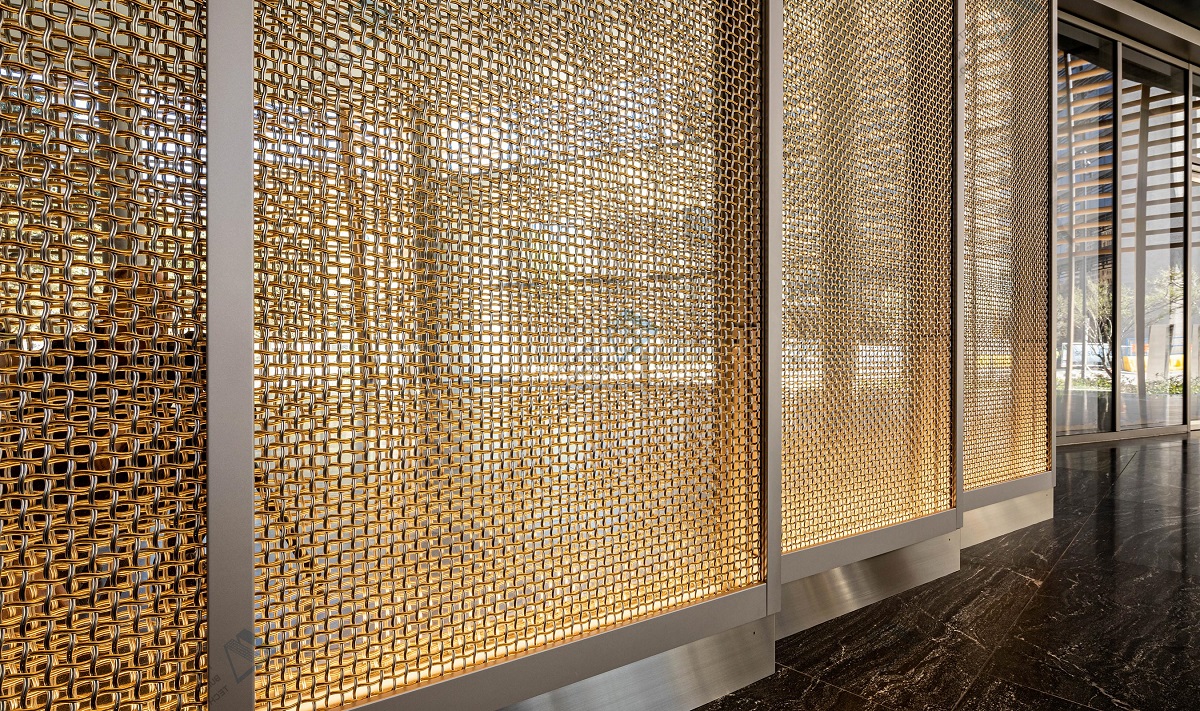

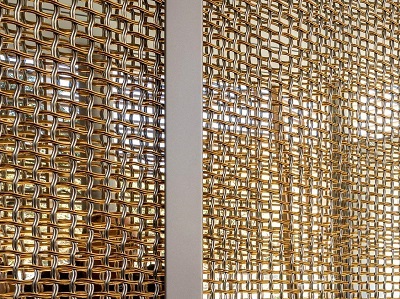

This architectural wire mesh is often used as commercial building partition screens and shopping more interior decorative screens, shopfitting screening.
Specification Table.
|
Raw Material |
SS304 or SS316+True Brass Wires |
|
Mesh Type |
Rigid Architectural Wire Mesh |
|
Single Wire Diameter: |
2.45mm |
|
Bigger Aperture Size |
15mm |
|
Smaller Aperture Size |
10mm |
|
Overall Thickness of the Fabric |
5mm |
|
Opening Area |
51% |
|
Privacy Rate |
49% |
|
Estimated Square Meter Weight |
9.3kg/㎡ |
|
Finish |
Mill Finish. |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut Only |
|
All optional Finishes |
Mill Finish |
|
Custom made specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
