METART-WW08-Antique Copper Cabinetry Wire Mesh

Specification

Material: Stainless Steel Grade 201, 304 or marine grade 316.

Type: Rigid Architectural Wire Mesh

Opening Area: 53%

Estimated Square Meter Weight: Approx 4.4kg㎡

Finish: Antique Copper Plated

Screen Width: Custom made

Screen Length: Custom made

GET A QUOTE

Introduction

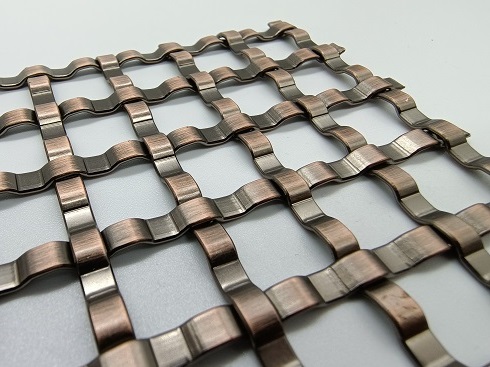

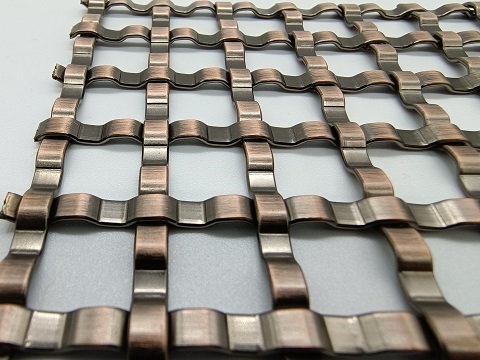

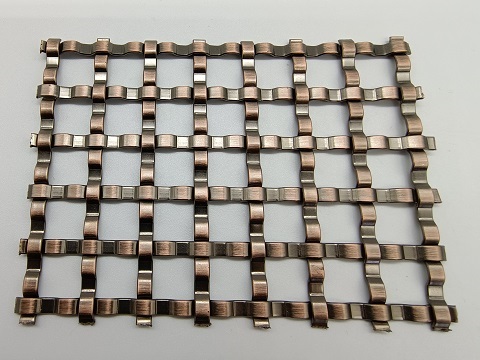

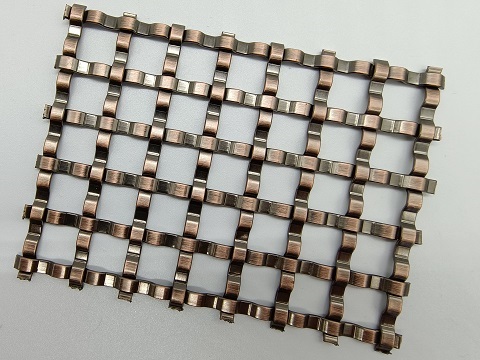

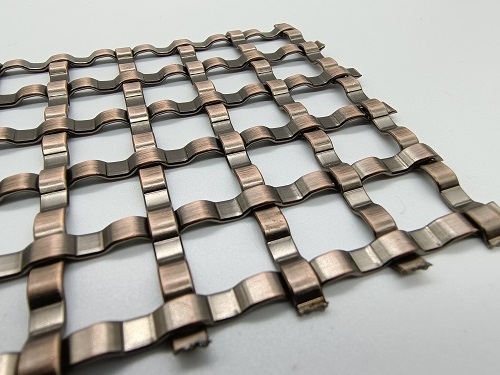

This design is METART-WW08, which is a variant of WW07 and is likewise made up using pre-crimped flat wire strips.

However, the crimping is deeper than WW07. In addition, the wire gauge is more substantial than WW07. The wire grille will have increased tensile and shear strength as a result of all of these alterations.

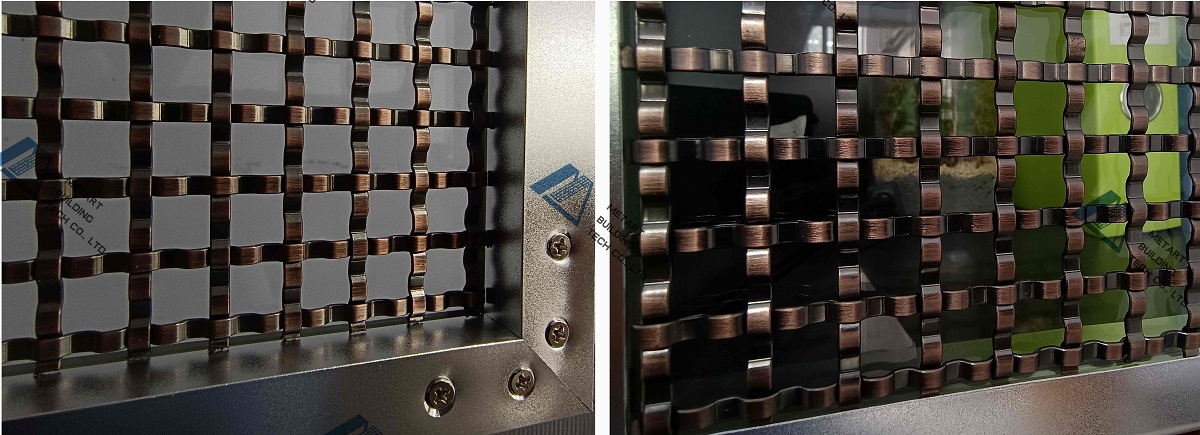

It is possible to use it as ornamental separators, a material for wall cladding, decorative mesh for furniture, wire mesh grille inserts for kitchen cabinets, wire mesh ceiling tiles or office cabinets, and ventilation cover mesh.
Specification Table.

Material

Stainless Steel Grade 201,304 or 316.

Type

Rigid Architectural Wire Mesh

Flat Wire Strip(Width x Thickness):

4x1.0mm

Clear Hole Size

10.7mm

Overall thickness of the fabric

2.6mm

Opening Area

53%

Privacy Rate

47%

Estimated Square Meter Weight

4.4kg/㎡

Finish

Antique Copper Plated.

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate,
Vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
