Glass Infill Decorative Wire Mesh-METART-WW39-3585

Specification

Raw Material: SS201, SS304, and SS316.

Mesh Type: Rigid Architectural Wire Mesh

Opening rate: 62%

Estimated Square Meter Weight: Approx 3.8 kg/㎡

Finish: Mill Finish

Sheet Size: Custom made

GET A QUOTE

Introduction

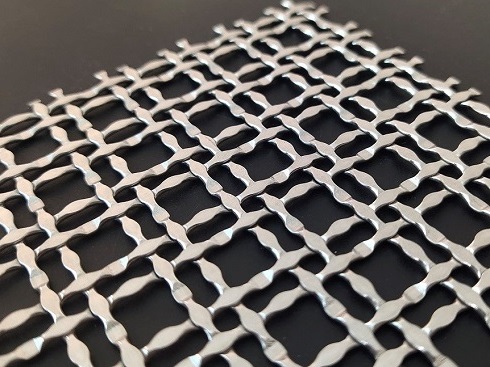

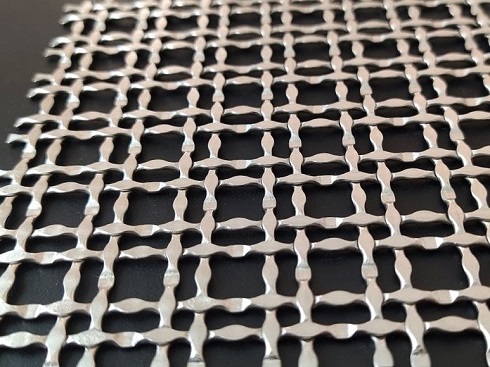

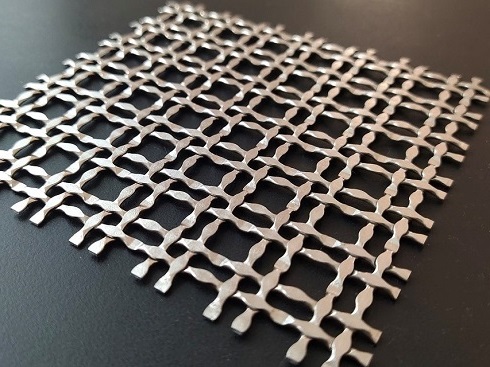

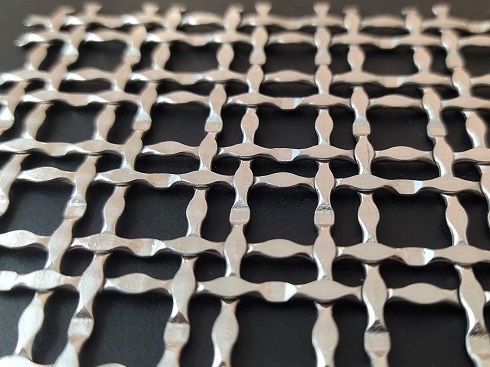

Introducing the METAR WW39-3585, a high-quality woven wire mesh made of deep crimped flattened stainless steel wire. This product is perfect for use in laminated glass wire mesh and architectural screens.

Crafted from premium raw materials such as SS201, SS304, and SS316, the METAR WW39-3585 boasts a wire diameter of 1.55mm before flattened, making it lightweight and easy to handle. The mesh features a big aperture size of 8.5x8.5mm, a small aperture size of 3.5x3.5mm, and a slot hole size of 3.5x8.5mm, ensuring excellent airflow and visibility.

With an overall thickness of 1.4mm, the METAR WW39-3585 has an opening area of 62%, providing limited privacy which is not an ideal option for applications where privacy is a top priority. But it would be a perfect material for screening where needs more visibility.

The METAR WW39-3585 is available in various finishes, including Mill Finish (Original stainless steel bright finish), Antique Bronze plating, Antique Copper plating, Antique brass plating, and PVD titanium plating, making it a versatile and customizable product.

Choose the METAR WW39-3585 for your next architectural or privacy screen project and enjoy its durability, functionality, and versatility.
Specification Table.

Raw Material

SS201, SS304, SS316

Mesh Type

Rigid Architectural Wire Mesh

Wire Diameter Before Flattened

1.55mm

Big Aperture Size

8.5x8.5mm

Small Aperture Size

3.5x3.5mm

Slot Hole Size

3.5x8.5mm

Overall thickness of the fabric

1.4mm

Opening Area

62%

Privacy Rate

38%

Estimated Weight

3.8 kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut.

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, PVD titanium plated

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
