Laminated Glass Infill Architectural Metal Mesh-METART-WW39-3514

Specification

Raw Material: SS201, SS304, SS316

Mesh Type: Rigid Architectural Woven Wire Mesh

Opening rate: 60%

Estimated Square Meter Weight: Approx 2.9 kg/㎡

Finish: Mill Finish

Sheet Size: Custom made

GET A QUOTE

Introduction

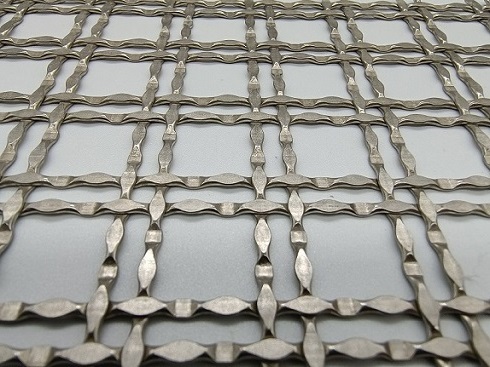

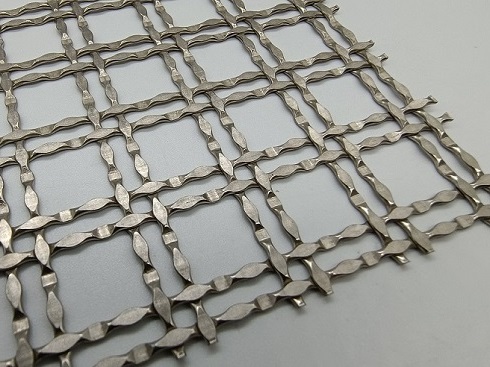

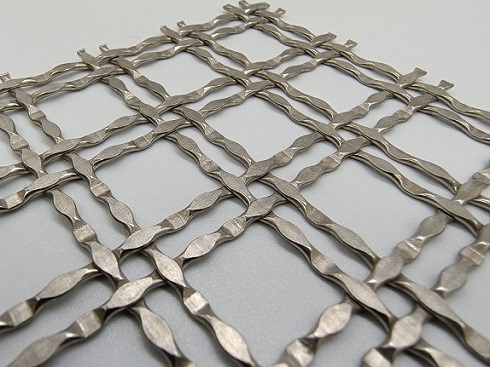

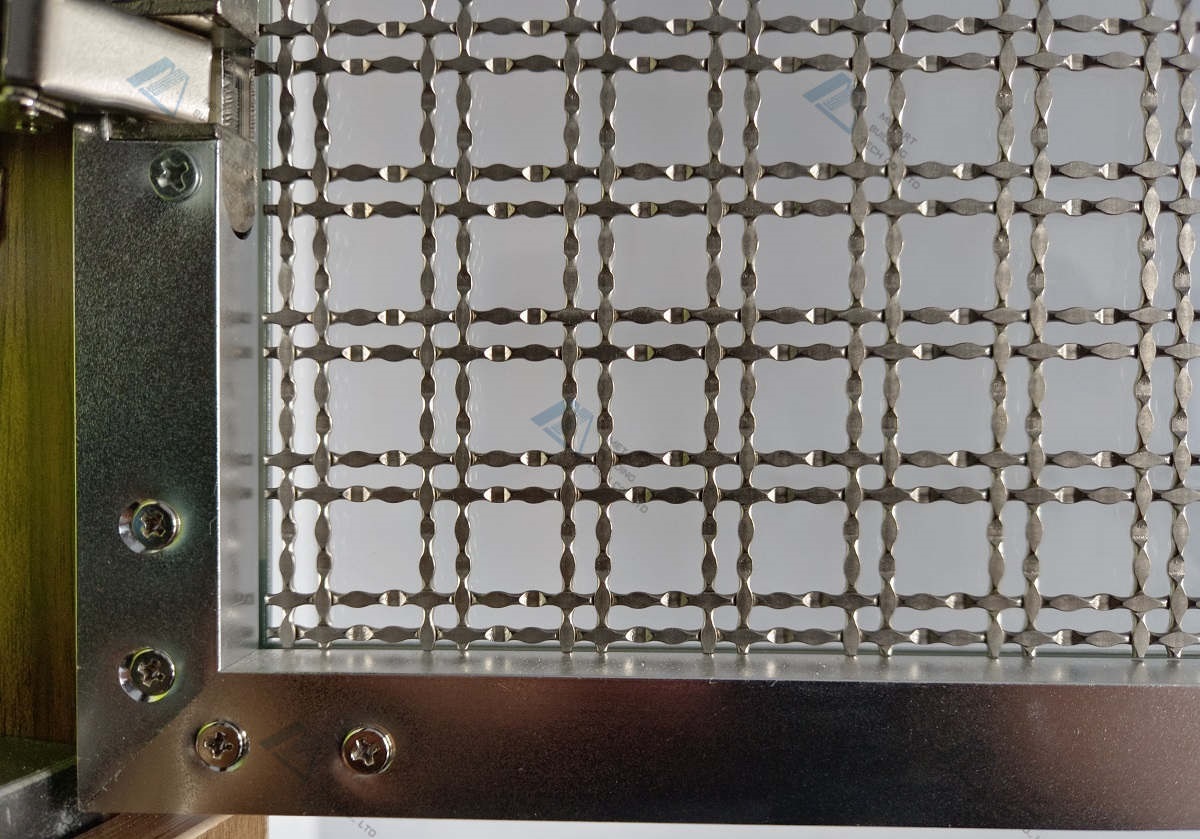

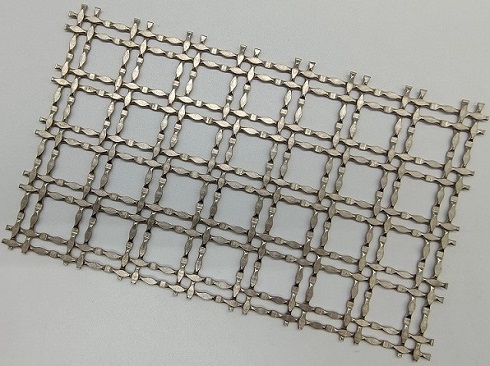

METART WW39-3514 is a premium quality architectural wire mesh pattern that is perfect for use in laminated glass inserts, cabinetry door infill wire grilles, and screens. This versatile product is made of deep crimped flattened stainless steel wire and is designed to offer durability and functionality.

Crafted from high-quality materials such as SS304, SS316, or its lower grade of SS201, as well as other alloy wires, the METART WW39-3514 adopts a wire diameter of 1.55mm before flattened, making it lightweight and easy to handle.

With a big aperture size of approx 13.7x13.7mm, a small aperture size of 3.5x3.5mm, and a slot hole size of 3.5x13.7mm, this pattern offers ample airflow and visibility, making it an ideal choice for various architectural applications.

The METART-WW39-3514 wire mesh has an overall thickness of 1.4mm, providing a privacy rate of 40% and an opening rate of 60%.

This product is available in stainless steel mill finish, with the option of straight or diamond cut.

It also comes in various finishes, including Antique Bronze plating, Antique Copper plating, Antique brass plating finish, and PVD titanium plating.
Specification Table.

Raw Material

SS201, SS304, SS316

Mesh Type

Rigid Architectural Wire Mesh

Wire Diameter Before Flattened

1.55mm

Big Aperture Size

13.7x13.7mm

Small Aperture Size

3.5x3.5mm

Slot Hole Size

3.5x13.7mm

Overall thickness of the fabric

1.4mm

Opening rate

60%

Privacy Rate

40%

Estimated Square Meter Weight

2.9 kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut.

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
