hello@metartmesh.comMETART-WW22-Cellaret Decorative Stainless Steel Wire Mesh
Raw Material: Stainless Steel Grade 201,304, or 316.
Mesh Type: Rigid Architectural Wire Mesh
Opening rate: 41.5%
Estimated Square Meter Weight: Approx 6kg/㎡
Finish: Mill Finish
Sheet Width: Custom made.
Sheet Length: Custom made
METART-WW22 is made of 2x1mm pre-crimped wire strips and 1.45mm regular crimped wires.
This pattern is designed to suit the requirement of different kinds of cabinetry door infills requirements, including cellaret wire grilles, kitchen cabinet door inserts, cupboard decorative wire grilles, office cabinets ornamental mesh, etc.

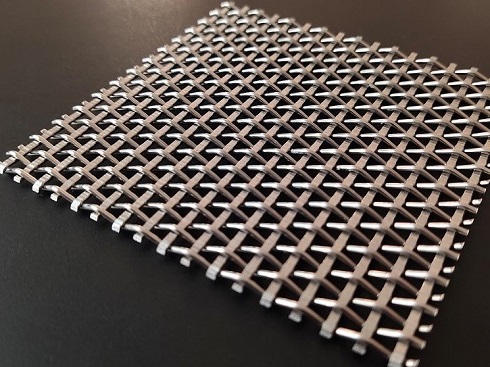

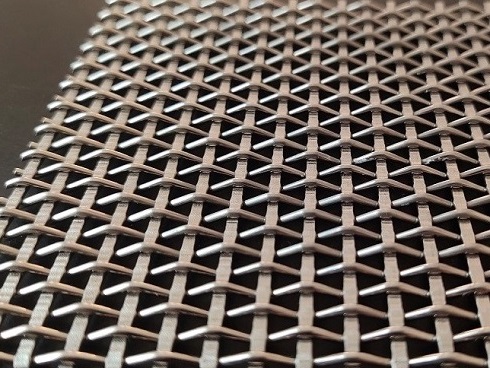

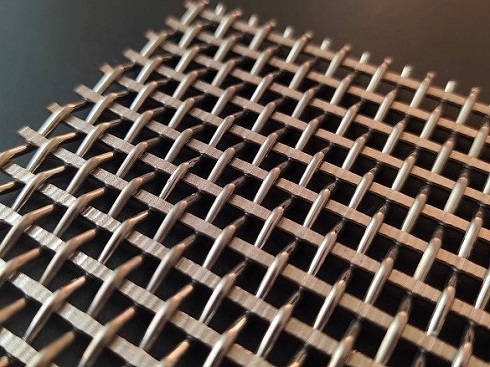

The exhibited sample is mill-finished stainless steel. It is made of grade 304 stainless in both directions.
Besides ss304, you can also choose a cheaper grade ss201 and a higher marine grade ss316 according to your using environment.
This ornamental stainless steel wire grille can be also used as featured shopfitting screen infills, room divider infill wire mesh, wall cladding architectural wire mesh, etc.
METART provides different surface treatments for this architectural wire mesh pattern, including PVD plated finish, copper plated finish, bras finished finish, powder coated finish, regular painted finish, PVDF-painted finish, etc.
Specification Table.
Raw Material |
Stainless Steel 201,304 or 316 |
Mesh Type |
Rigid Architectural Wire Mesh |
Wire Strip (Width x length) |
2x1mm |
Wire Rod Diameter |
1.45mm |
Clear Hole Size |
2.4x4mm |
Overall thickness of the fabric |
3mm |
Opening Area |
41.5% |
Privacy Rate |
58.5% |
Estimated Square Meter Weight |
6kg/㎡ |
Finish |
Stainless Steel Mill Finish |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut Only |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
