hello@metartmesh.comMETART-WW40-Balustrading Stainless Steel Architectural Wire Mesh
Raw Material: Stainless Steel Grade 201, 304 , 316
Mesh Type: Rigid Architectural Wire Mesh
Opening rate: 65%
Estimated Square Meter Weight: Approx 6.6g/kg
Finish: Mill Finish
Sheet Size: Custom made

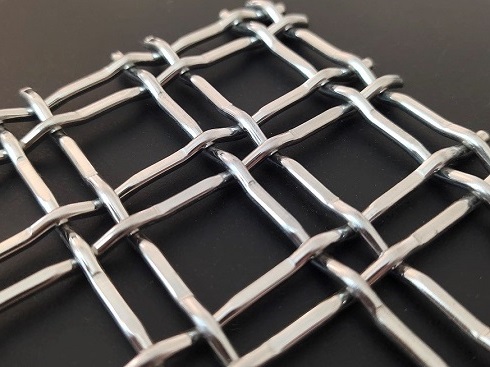

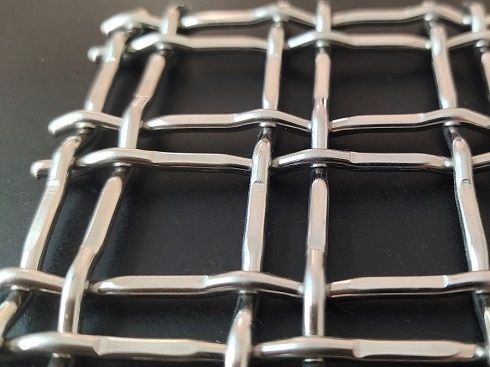

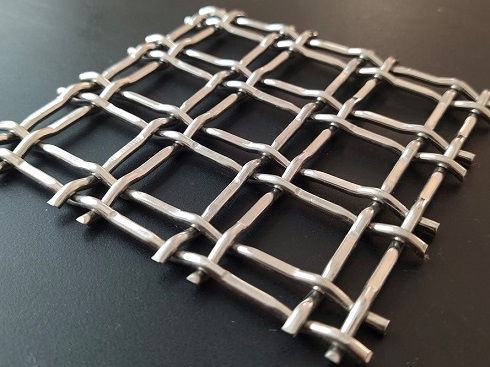

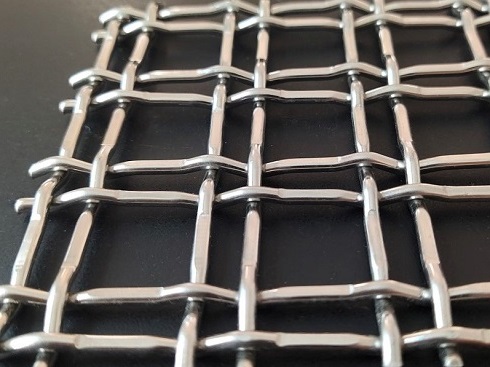

METAR WW 40 is a versatile wire mesh pattern perfect for adding a touch of style and privacy to any space.

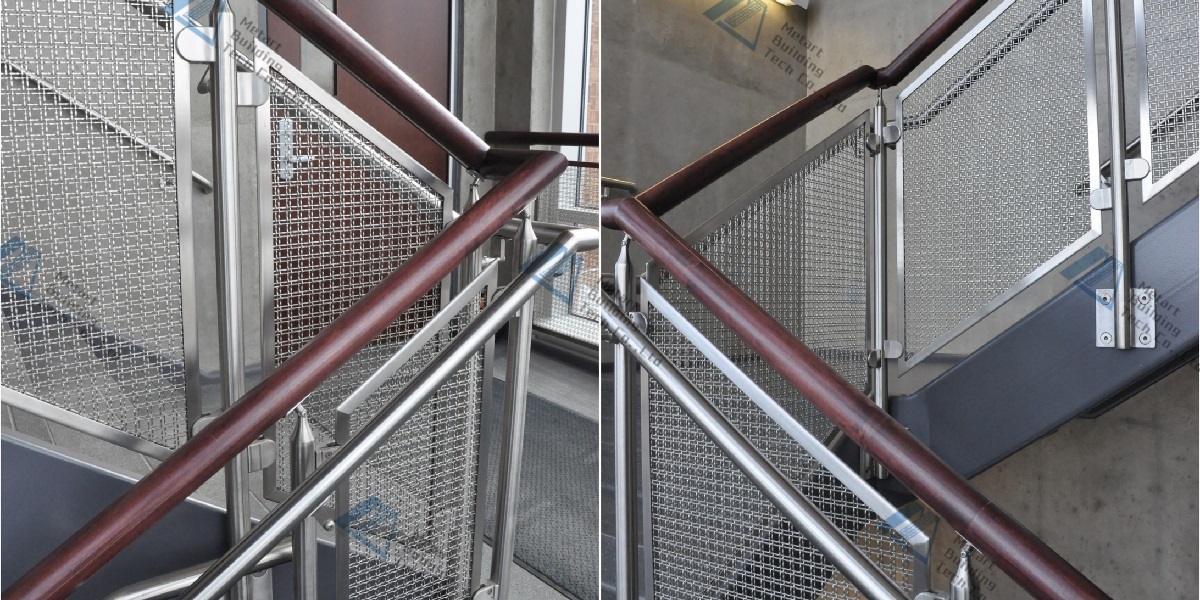

Made from high-quality stainless steel wires, this rigid architectural wire mesh is ideal for a range of applications including room divider mesh panels, partition screen mesh, cabinet door metal mesh inserts, railing infill wire mesh panels, and more.
With a wire diameter of 2.75mm and a big aperture size of 17.6mm, this mesh provides a sturdy yet elegant design. The small aperture size of 5.4x5.4mm and slot hole size of 5.4x17.6mm offer a balance between a certain of privacy and openness, with an opening rate of 65% and a privacy rate of 35%. The overall thickness of the fabric is 5.3mm, giving it a substantial and durable feel.
Available in a range of finishes including the original stainless steel mill finish, antique bronze plating, antique copper plating, antique brass plate, and vacuum titanium plated, this mill-finished wire mesh is a versatile and customizable option for any project.
At an estimated square meter weight of 6.6g/㎡, METAR WW 40 is a lightweight option that is easy to install and work with. Whether you're looking for a stylish way to divide a room, add privacy to a balcony or terrace, or enhance the look of a cabinet or door, METAR WW 40 wire mesh panels are an excellent choice.
Specification Table.
Raw Material |
SS201, SS304, SS316, and other alloy wires |
Mesh Type |
Rigid Architectural Wire Mesh |
Wire Diameter |
2.75mm |
Big Aperture Size |
17.6mm |
Small Aperture Size |
5.4x5.4mm |
Slot Hole Size |
5.4x17.6mm |
Overall thickness of the fabric |
5.3mm |
Opening rate |
65% |
Privacy Rate |
35% |
Estimated Square Meter Weight |
6.6g/㎡ |
Finish |
Stainless Steel Mill Finish |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut, Diamond Cut. |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
