METART-WW42-3015-Brass Plated Shopfitting Architectural Wire Mesh

Specification

Raw Material: SS201, SS304, SS316.

Mesh Type: Rigid Architectural Wire Mesh

Opening Area: 58%

Weight: Approx 3.5kg/Square Meter

Finish: Brass Plating Finish

Sheet Size: Custom made

GET A QUOTE

Introduction

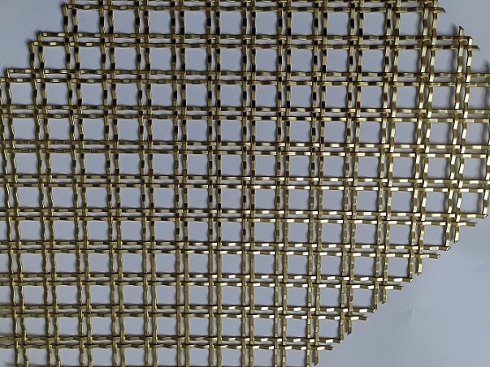

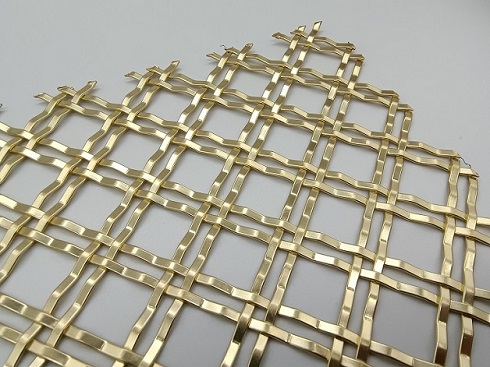

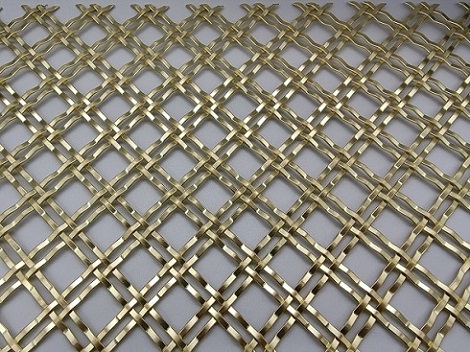

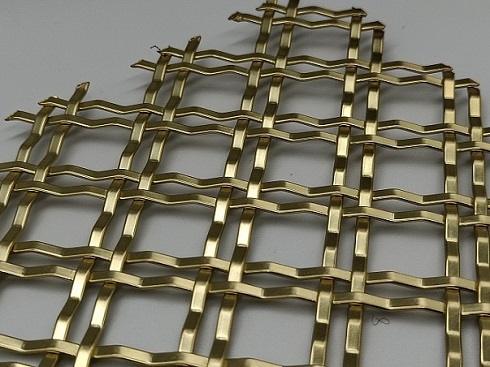

METART WW42-3015 is a brass-plated stainless steel designer wire mesh pattern that is both lightweight and stylish.

This architectural wire mesh is perfect for a variety of applications, from replacing old cabinet doors to creating fancy wire mesh door inserts.

Additionally, it is an excellent choice for the laminated glass industry as the insert mesh panels. With its unique pattern, it is also a popular material to fabricate interior living room divider screens or office partition screens, adding a touch of modern sophistication to any space.

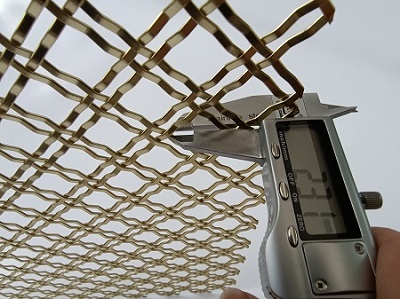

Crafted from high-quality raw materials such as SS201, SS304, or SS316, this pattern features flattened wire strips that measure 2.9x1mm, with big aperture sizes of 15.5x15.5mm, small aperture sizes of 3.0x3.0mm, and slot hole sizes of 3.0x15.5mm. The overall thickness of the fabric is 2.3mm, with an opening rate of 58% and a privacy rate of 42%.

At an estimated square meter weight of 3.5kg/㎡, the METART WW42-3015 is a durable and reliable option that will stand the test of time. With its brass-plated finish, it provides a polished and sophisticated look that is sure to impress.

Upgrade your space with this exquisite architectural wire mesh pattern today.

Specification Table.

Raw Material

SS201, SS304, SS316

Mesh Type

Architectural Wire Mesh

Flattened Wire Strip(widthxthickness)

2.9x1mm

Big Aperture Size

15.5x15.5mm

Small Aperture Size

3.0x3.0mm

Slot Hole Size

3.0x15.5mm

Overall thickness of the fabric

2.3mm

Opening rate

58%

Privacy Rate

42%

Estimated Square Meter Weight

3.5kg/㎡

Finish

Brass Plated.

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut.

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
