Antique Copper Architectural Stainless Steel Wire Mesh -METART WW18SS

Specification

Raw Material: SS201, SS304 or SS316 wires

Mesh Type: Rigid Architectural Wire Mesh

Opening Area: 51%

Estimated Squaree Meter Weight: Approx 9kg/㎡

Finish: Antique Copper Plating

Width: Custom made

Length: Custom made

GET A QUOTE

Introduction

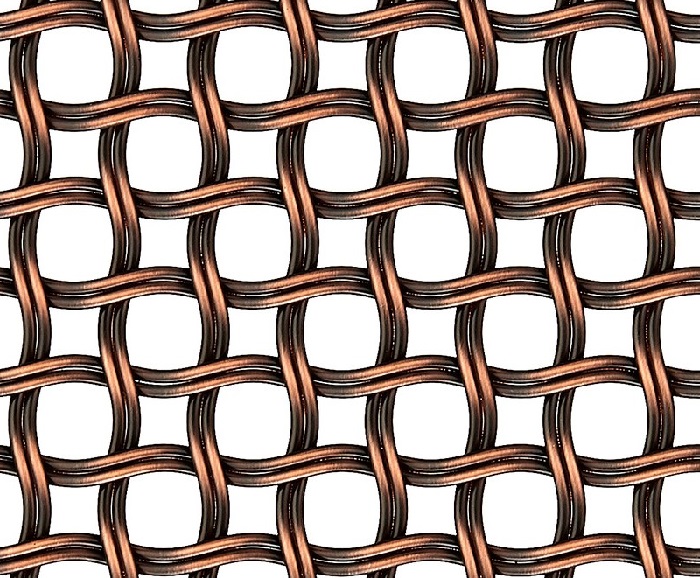

This variant of the woven wire design METART WW18SS is copper-plated to give it an antique appearance.

Please take into consideration that this is merely an old copper plated finish and not a genuine copper material.

Stainless steel was used in the construction of this architectural wire mesh. Depending on the environment in which the wire mesh will be used, you can either choose grade 304 wire mesh or grade 316 wire mesh.
Specification Table.

Raw Material

SS201, SS304, SS316

Mesh Type

Rigid Architectural Wire Mesh

Single Wire Diameter

2.45mm

Bigger Aperture Size

15mm

Smaller Aperture Size

10mm

Overall thickness of the fabric

5mm

Opening Area

51%

Privacy Rate

49%

Estimated Square Meter Weight

9kg/㎡

Finish

Antique Copper Plated

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finishes

Mill Finish ( Original stainless steel bright finish),

Antique Bronze plated, Antique Copper plated, Antique brass plated, Vacuum Titanium Plated-Golden,Titanium Plated Black, Titanium Plated Rose Gold, Painted, PVDF Coated

Custom specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
