METART-WW02-Mill Finish-Flat Architectural Cladding Metal Screen

Specification

Material: Stainless Steel Wire Strips Grade 201, 304, 316.

Type: Rigid Decorative Wire Mesh

Opening Area: 6%

Estimated Square Metar Weight: Approx 11.6kg/㎡

Finish: Mill Finish

Screen Width: Custom made

Screen Length: Custom made

GET A QUOTE

Introduction

This is the original mill-finished version of the stainless steel decorative woven wire pattern METART-WW02.

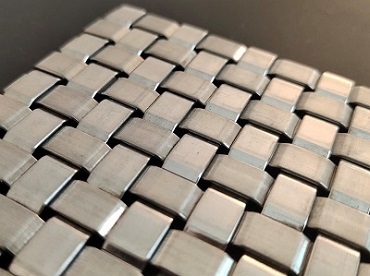

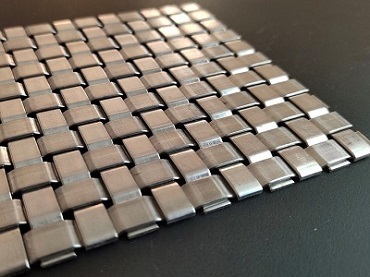

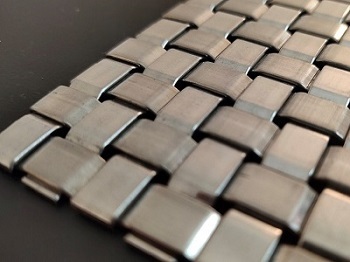

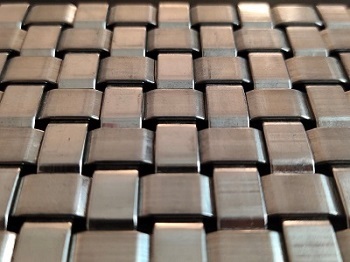

Similar to what we've shown in the photographs up top, the original stainless steel finish is rather plain-looking. The majority of the time, after creating the mesh with the frames or other components, clients buy this finish and have it coated in their own plant.

If you like, you can use it plain, without any coating.

However, you may select a different surface treatment from the table below if you want a superior finish with color coating.

Specifications Table:

Material

Stainless Steel Grade 201, 304 or 316 optional.

Type:

Rigid Decorative Wire Mesh

Flat Wire Strip (Width x Thickness)

7x1mm

Clear Hole Size

2.3x2.3mm

Overall thickness of the fabric

1.94mm

Opening Area

6%

Privacy Rate

94%

Estimated Square Meter Weight:

11.6kg/㎡

Finish

Mill Finish (Original stainless steel bright finish)

All optional Finish

Mill Finish (Original stainless steel bright finish), Antique Bronze plated,

Antique Copper plated, Antique brass plated, Vacuum Titanium Plated-Golden, Titanium Plated Black, Titanium Plated Rose Gold, Painted, PVDF Coated

Customized specifications and Mini order accepted.

Note:
All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication.
