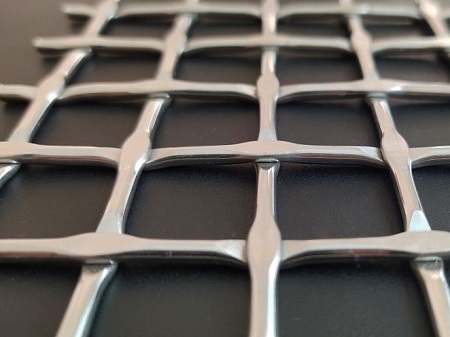

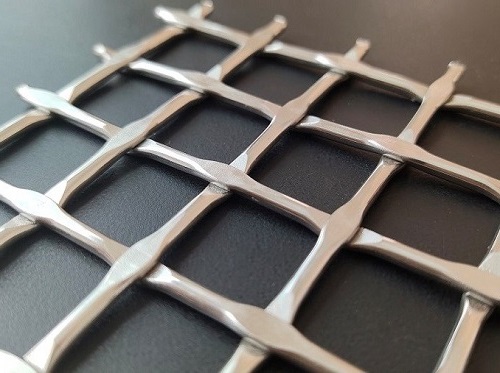

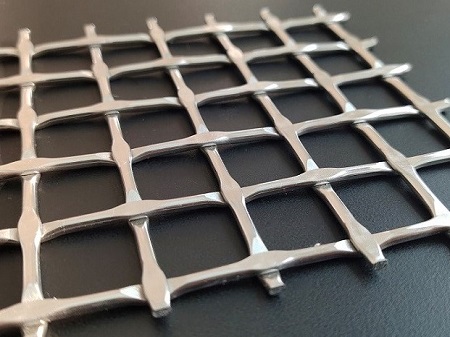

METART-WW11-Stainless Steel Cabinetry Wire Mesh
Material: Stainless Steel Grade 201, 304, or marine grade 316.
Type: Rigid Architectural Woven Wire Mesh
Opening Area: 72%
Estimated Square Meter Weight: Approx 5.1kg/㎡
Finish: Mill Finish
Screen Width: Custom made.
Screen Length: Custom made.
The architectural woven wire pattern METART WW11 product is an upgraded version of the WW10 product.
in order to achieve greater durability, we increased the wire diameter and shrunk the hole size.
Following the upgrade, this design is somewhat more suited for use as a protective screen, a screen for fencing, wall cladding mesh, cabinetry door infill mesh, and ornamental partition metal screens.
Specification Table.
|
Material |
Stainless Steel 201,304 or 316. |
|
Type |
Rigid Architectural Wire Mesh |
|
Wire Diameter |
2.75mm |
|
Clear Hole Size |
15.4mm |
|
Overall thickness of the fabric |
3mm |
|
Opening Area |
72% |
|
Privacy Rate |
28% |
|
Weight |
5.1kg/Square Meter |
|
Finish |
Stainless Steel Mill Finish |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut, Diamond Cut |
|
All optional Finish |
Mill Finish ( Original stainless steel bright finish), |
|
Custom made specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
