METART-WW34MSSRB-High End Divider Screen Ornamental Metal Mesh
Raw Material: SS304 or SS316 Wires + True Brass Wires
Mesh Type: Rigid Decororative Wire Mesh
Opening rate: 10%
Estimated Square Meter Weight: Approx 16.3kg/㎡
Finish: Mill Finish
Sheet Size: Custom Made

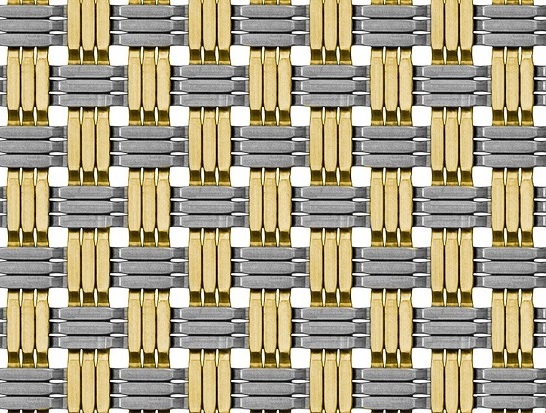

METART-WW34MSSRB is an ornamental woven wire mesh created by a mixture of stainless steel and brass wires.
Very similar to its ss+copper counterpart, this ornamental woven wire pattern also has an amazing look which is favored by a lot of designers and architects.
Specification Table.
|
Raw Material |
SS304 or SS316 +True Brass Wires |
|
Mesh Type |
Rigid Architectural Mesh |
|
Single Wire Strip(widthxthickness) |
2.7x1.4mm |
|
Strip Group Width (3 wires) |
9.1mm |
|
Clear Hole Size |
4x4mm |
|
Overall thickness of the fabric |
2.8mm |
|
Opening rate |
10% |
|
Privacy Rate |
90% |
|
Estimated Square Meter Weight |
16.3kg/㎡ |
|
Finish |
Mill Finish |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut |
|
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
|
Custom made specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
