hello@metartmesh.comMETART-WW06-31032-Wine Bar Decorative Wire Mesh
Material: Stainless Steel Wire Strips Grade 201,304, or marine grade 316.
Type: Rigid Decorative Wire Mesh
Opening Area: 27.5%
Estimated Square Meter Weight: Approx 7.2kg/㎡
Finish: Mill Finish
Screen Width: Custom made
Screen Length: Custom made.

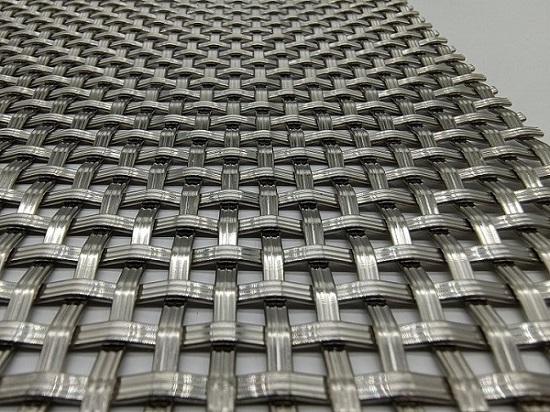

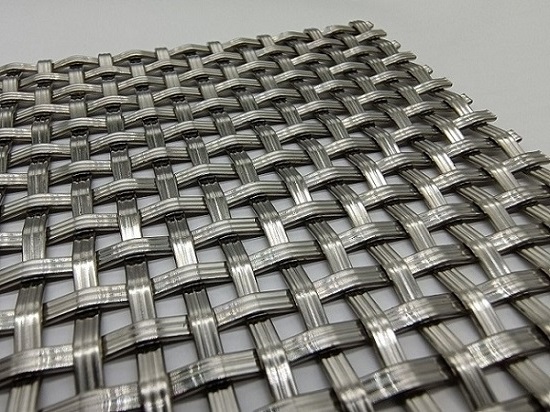

The physical characteristics of METART-WW06-31032 are exactly the same as those of WW06-31024.
There are several areas in which the two are comparable to one another. On the other hand, the diameter of the hole has been somewhat enlarged. It gives the mesh an opening rate that is significantly higher than that of the other available choices. Wires measuring 2.9 millimetres in width and 1 millimetre in thickness are used to create this mesh structure. The diameter of the clear void is 3.2 millimetres on each side. There is no additional finish that is referred to be mill finished on the sample. You have the option of picking other colours in addition to those that are presented if this meets your requirements in a more satisfactory manner. Some of the applications that are suitable for use with this material include cabinet door mesh, privacy screens, partition screen mesh, wall cladding mesh, railing system infill mesh, and swimming pool fence panels.
Specification Table.
Material |
Stainless Steel Grade 201,304 or 316. |
Type |
Rigid Decorative Wire Mesh |
Flat Wire Strip(WidthxThickness): |
3x1.0mm |
Clear Hole Size |
3.2mm |
Overall thickness of the fabric |
2.2mm |
Opening Area |
27.5% |
Privacy Rate |
72.5% |
Estimated Square Meter Weight |
7.2kg/㎡ |
Finish |
Stainless Steel Mill Finish |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut, Diamond Cut |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
