METART-WW29F-Brass Plated Shopfitting Stainless Steel Decorative Wire Mesh

Specification

Raw Material: Stainless Steel 201,304 and 316

Mesh Type: Rigid Architectural Wire Mesh

Opening Rate: 45%

Estimated Square Meter Weight: Approx 5.2kg/㎡

Finish: Brass Plating

Sheet Size: Custom Made

GET A QUOTE

Introduction

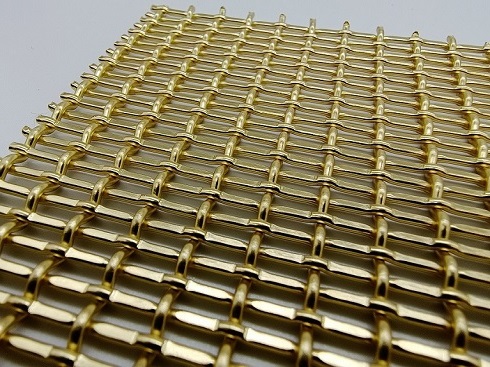

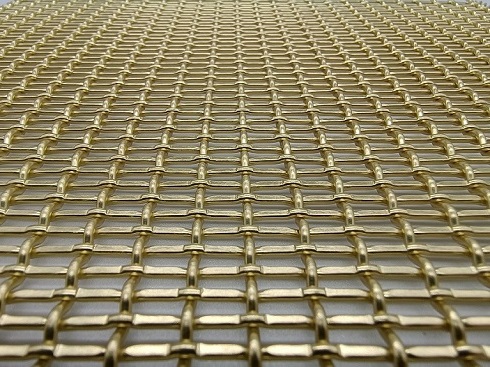

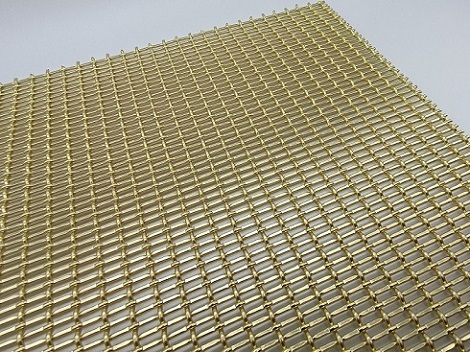

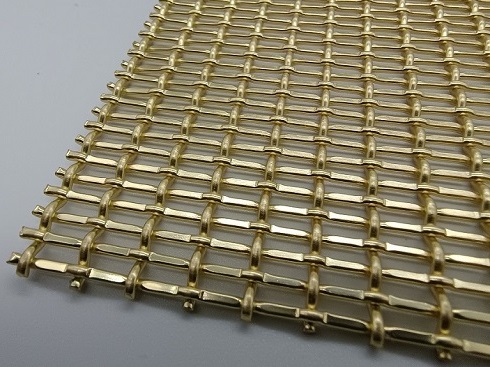

METART WW29F is a slightly flattened ornamental woven wire mesh with slot holes.

The exhibited sample is its brass-plated version. This decorative pattern is relatively heavier and more sturdy than METART-WW29 as it is made of 1.45mm stainless steel wire in both directions which is a bit thicker than ww29.

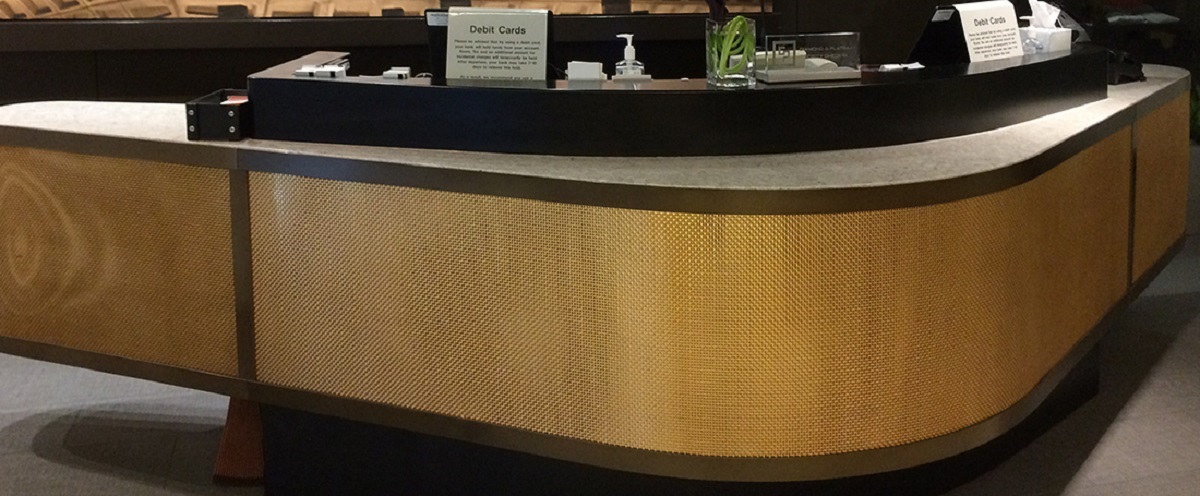

This ornamental wire grille can be used for shopfitting screening infill mesh, wall cladding decorative wire fabrics, furniture infill wire mesh, and cabinetry decorative wire grilles, etc.
Specification Table.

Raw Material

Stainless Steel 201,304 or 316, truce Brass, Copper

Mesh Type

Rigid Architectural Wire mesh

Wire Diameter

1.45mm

Aperture Size

2x6.5mm

Wire Pitch

3.6x8mm

Overall thickness of the fabric

3.1mm

Opening rate

45%

Privacy Rate

55%

Estimated Square Meter Weight

5.2kg/㎡

Finish

Brass Plated.

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
