METART-WW44-Interior Decor Screen Infill Architectural Wire Mesh

Specification

Raw Material: SS201, SS304,SS316

Mesh Type: Rigid Architectural Wire Mesh

Opening rate: 62.8%

Square Meter Weight: Approx 5.6kg/㎡

Finish: Mill Finish

Sheet Size: Custom made

GET A QUOTE

Introduction

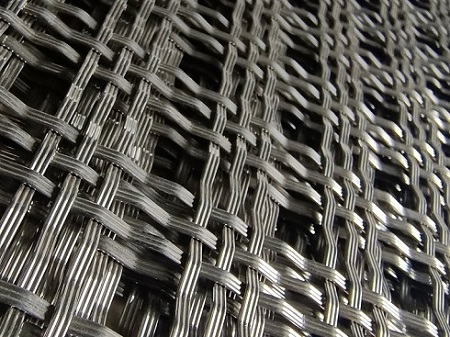

This is the diamond cut sample of our designer wire mesh pattern METART-WW44.

It is the perfect solution for customers looking to add a touch of elegance and sophistication to their commercial or residential space. This decorative wire mesh pattern is available in SS201, SS304, and SS316 materials, and is designed for use in a wide range of applications, including partition screen infill panels, living room divider screen mesh, commercial building wall cladding metal mesh screens, laminated glass inserts as well as cabinetry architectural wire grilles.

One of the most unique features of this pattern is its diamond-cut shape, which offers a better look and feel, but at a higher cost.

Despite this, many customers still prefer it for its exceptional aesthetic value. The rigid decorative wire mesh is made with a flattened wire strip measuring 2.9x1mm, a big aperture size of 15.5x15.5mm, and a small aperture size of 3.3x3.3mm. The slot hole size measures 3.3x15.5mm, and the overall thickness of the fabric is 2.2mm.

With an opening rate of 62.8% and a privacy rate of 37.2%, the METART WW44 Diamond Cut Woven Wire Pattern strikes the perfect balance between form and function. Each square meter weighs an estimated 5.6kg, making it a durable and long-lasting choice for any interor decoration project.

The pattern is available in a mill finish and many other different finishes based on customers' requirements.

Upgrade your space with the METART WW44 Diamond Cut Woven Wire Pattern today.

Contact us to learn more about our special promotions and discounts, and start your order today.

Specification Table.

Raw Material

SS201, SS304, SS316

Mesh Type

Rigid Decorative wire mesh

Flattened Wire Strip(widthxthickness)

2.9x1mm

Big Aperture Size

15.5x15.5mm

Small Aperture Size

3.3x3.3mm

Slot Hole Size

3.3x15.5mm

Overall thickness of the fabric

2.2mm

Opening rate

62.8%

Privacy Rate

37.2%

Estimated Square Meter Weight

5.6kg/㎡

Finish

Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut.

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted.

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
