hello@metartmesh.comMETART-WW05-25103-Antique Brass Decorative Wire Mesh
Material: Stainless Steel Strips Grade 201, 304 or 316.
Type: Rigid Decorative Wire Mesh
Opening Area: 29.7%
Estimated Square Meter Weight: Approx 7.1kg/㎡
Finish: Antique Brass Plated
Screen Width: Custom made.
Screen Length: Custom made.
METART WW05-25103 is the ornamental flat wire mesh that has a wire thickness of 1.0 mm, a flat wire thickness of 2.5 mm, and a wire aperture size of 3 mm by 3 mm. The clear aperture size is 3 mm by 3 mm.
This #25103 wire fabric is normally constructed of stainless steel wires of grade 304 and 201 much like the majority of the ornamental woven wires available.
Because of its exceptional resistance to corrosion, grade 316 stainless steel is the material of choice wherever the mesh will be used in an environment that is exposed to the out door environments.

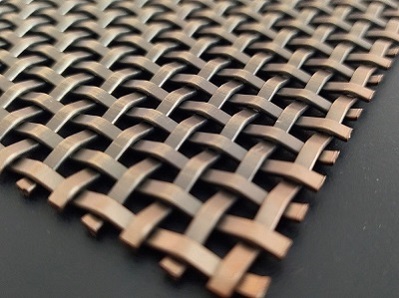

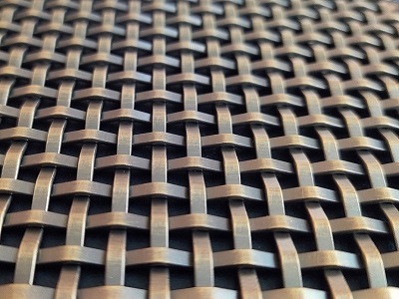

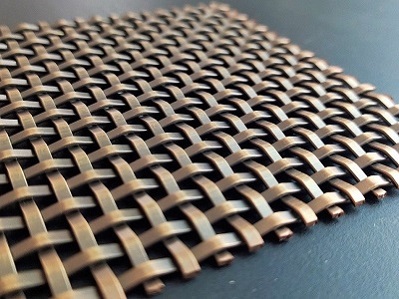

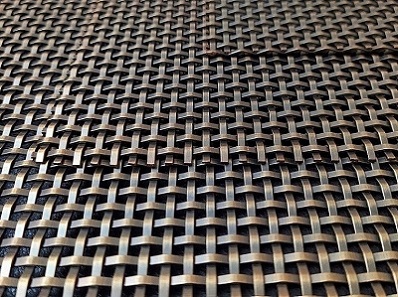

You can tell that they are antique-brass plated just by looking at the photographs that were displayed above this article.
This mesh material is an excellent option for the mesh panel on your kitchen cabinet door or the infill mesh for the door of your wine cabinet. Additionally, it has the potential to be an attractive material for laminated glass mesh, which may be used for both decorative and protective purposes.
Specification Table.
Material |
Stainless Steel Grade 201,304 or 316 |
Type |
Rigid Decorative Wire Mesh |
Flat Wire Strip (Width x Thickness) |
2.5x1mm |
Clear Hole Size |
3mm |
Overall thickness of the fabric |
2mm |
Opening Area |
29.7% |
Privacy Rate |
70.3% |
Square Meter Weight |
7.1kg/㎡ |
Finish |
Antique brass Plated. |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut, Diamond Cut |
All optional Finish |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
Please refer to the following table for all the specifications of METART WW05
Item # |
Flat Strip |
Clear Hole Dia. |
Opening Area |
Privacy Rate |
Square Meter Weight |
Overall Thickness |
METART 05-61585 |
6x1.5mm |
8.5x8.5mm |
34% |
66% |
9.5KG |
3.4mm |
METART 05-41022 |
4x1mm |
2.2x2.2mm |
11% |
89% |
9.2KG |
3.2mm |
METART 05-31507 |
3x1.5mm |
7x7mm |
49% |
51% |
7.0 KG |
3.0mm |
METART 05-31005 |
3x1.0mm |
5x5mm |
39% |
61% |
5.8 KG |
2.0mm |
METART 05-31204 |
3x1.2mm |
4x4mm |
33% |
67% |
7.6KG |
2.5mm |
METART 05-31205 |
3x1.2mm |
5x5mm |
39% |
61% |
7.0 KG |
2.4mm |
METART 05-31207 |
3x1.2mm |
7x7mm |
49% |
51% |
5.6 KG |
2.4mm |
METART 05-31210 |
3x1.2mm |
10x10mm |
59% |
41% |
4.3 KG |
2.4mm |
METART 05-31510 |
3x1.5mm |
10x10mm |
59% |
41% |
5.4 KG |
3.0mm |
METART 05-25103 |
2.5x1.0mm |
3x3mm |
29.7% |
70.3% |
7.1 KG |
2.0mm |
METART 05-22134 |
2.2x1.0mm |
3.4x3.4mm |
36.8% |
63.2% |
6.1 KG |
2.0mm |
METART 05-22834 |
2.2x0.8mm |
3.4x3.4mm |
36.8% |
63.2% |
4.9 KG |
1.6mm |
METART 05-22084 |
2.2x0.8mm |
4x4mm |
37% |
63% |
4.0KG |
1.6mm |
METART 05-18186 |
1.8x1.8mm |
6.2x6.2mm |
60% |
40% |
6.4KG |
3.6mm |
