METART-WW05-31507-Kitchen Cabinets Wire Mesh

Specification

Material: Stainless Steel Flat Wires Grade 201,304,316

Type: Rigid Decorative Wire Mesh

Opening Area: 49%

Estimated Square Meter Weight: Approx 7kg/Square Meter

Finish: Mill Finish

Screen Width: Customized.

Screen Length: Customized.

GET A QUOTE

Introduction

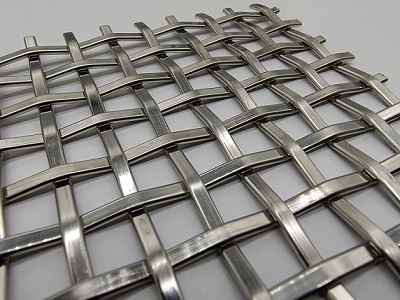

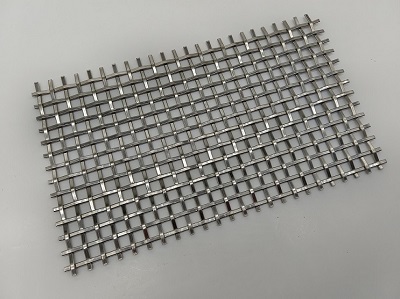

This particular architectural woven wire, METART-WW05-31507, is of the flat strip variety. The number 31507 refers to a flat architectural wire mesh that has wire strips measuring 3.0 millimeters, a wire thickness of 1.5 millimeters, and an aperture size of 7 millimeters.

This is an upgraded version of 31210 and 31207; the wire is growing thicker and the hole is getting smaller, which results in the mesh having a better tensile strength and a more durable overall structure.

This design of mesh is more suited for applications that demand a greater level of security, such as architectural fence, building metal facades, or railing infill panels.

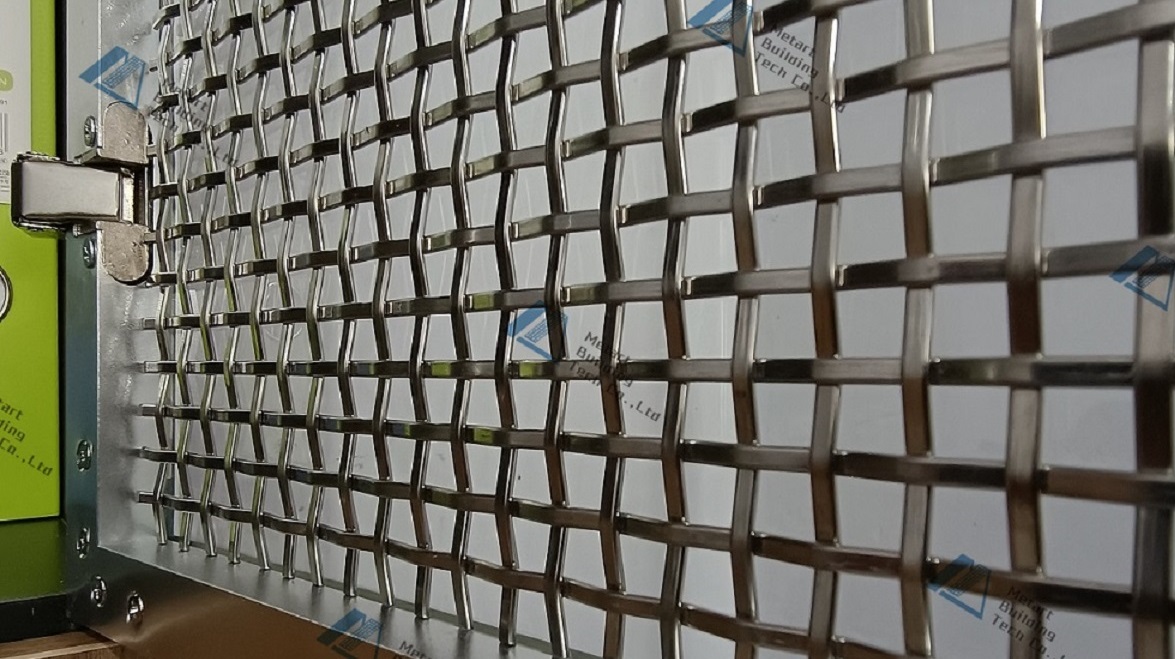

You may also use it as a cabinet door mesh or vent cover mesh to boost its degree of protection while while ensuring that it has adequate ventilation, if you so want.

Specification Table.

Material

Stainless Steel Grade 201,304 or 316.

Type

Rigid Decorative Wire Mesh

Flat Wire Strip:

3x1.5mm

Clear Hole Size

7mm

Overall thickness of the fabric

3.0mm

Opening Area

49%

Privacy Rate

51%

Estimated Square Meter Weight

7kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, Vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Please refer to the following table for all the specifications of METART WW05

Item #

Flat Strip

Clear Hole Dia.
mm

Opening Area

Privacy Rate

Square Meter Weight

Overall Thickness

Metart 05-61585

6x1.5mm

8.5x8.5mm

34%

66%

9.5KG

3.4mm

Metart 05-41022

4x1mm

2.2x2.2mm

11%

89%

9.2KG

3.2mm

Metart 05-31507

3x1.5mm

7x7mm

49%

51%

7.0KG

3.0mm

Metart 05-31005

3x1.0mm

5x5mm

39%

61%

5.8KG

2.0mm

Metart 05-31204

3x1.2mm

4x4mm

33%

67%

7.6KG

2.5mm

Metart 05-31205

3x1.2mm

5x5mm

39%

61%

7.0KG

2.4mm

Metart 05-31207

3x1.2mm

7x7mm

49%

51%

5.6KG

2.4mm

Metart 05-31210

3x1.2mm

10x10mm

59%

41%

4.3KG

2.4mm

Metart 05-31510

3x1.5mm

10x10mm

59%

41%

5.4KG

3.0mm

Metart 05-25103

2.5x1.0mm

3x3mm

29.7%

70.3%

7.1KG

2.0mm

Metart 05-22134

2.2x1.0mm

3.4x3.4mm

36.8%

63.2%

6.1KG

2.0mm

Metart 05-22834

2.2x0.8mm

3.4x3.4mm

36.8%

63.2%

4.9KG

1.6mm

Metart 05-22084

2.2x0.8mm

4x4mm

37%

63%

4.0kg

1.6mmm

Metart 05-18186

1.8x1.8mm

6.2x6.2mm

60%

40%

6.4KG

3.6mm
