hello@metartmesh.comMETART WW12-Cabinetry Creative Wire Mesh
Material: Stainless Steel Grade,201,304 or 316.
Type: Rigid Architectural Wire Mesh
Opening Area: 59%
Estimated Square Meter Weight: Approx 8kg/㎡
Finish: Gold Painted
Screen Width: Custom made
Screen Length: Custom made

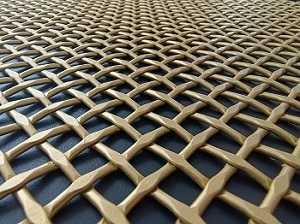

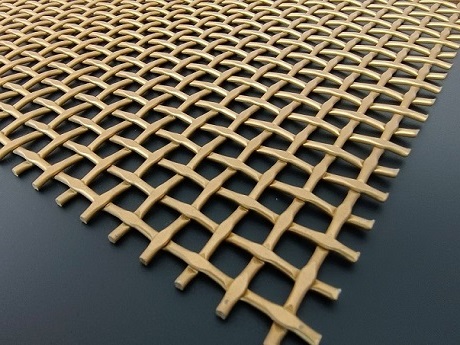

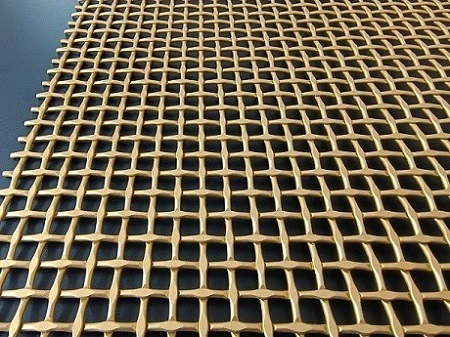

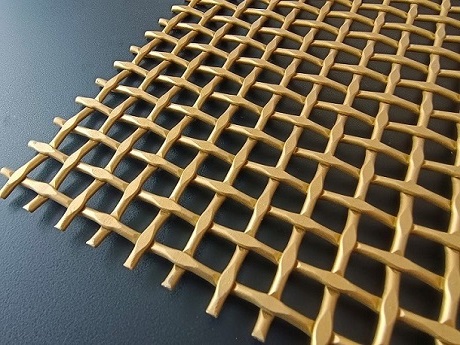

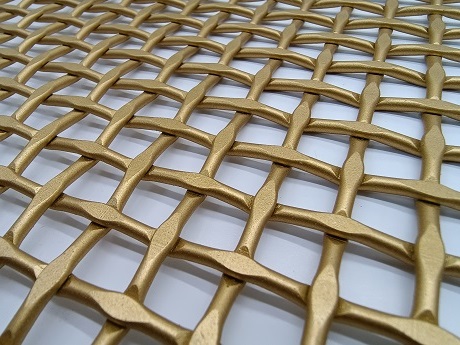

This is a golden-painted woven wire pattern METART WW12. The painted finish is only suitable for interior decoration.

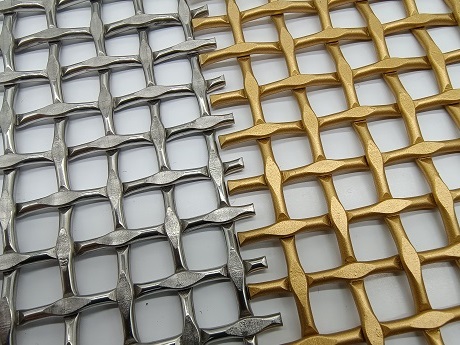

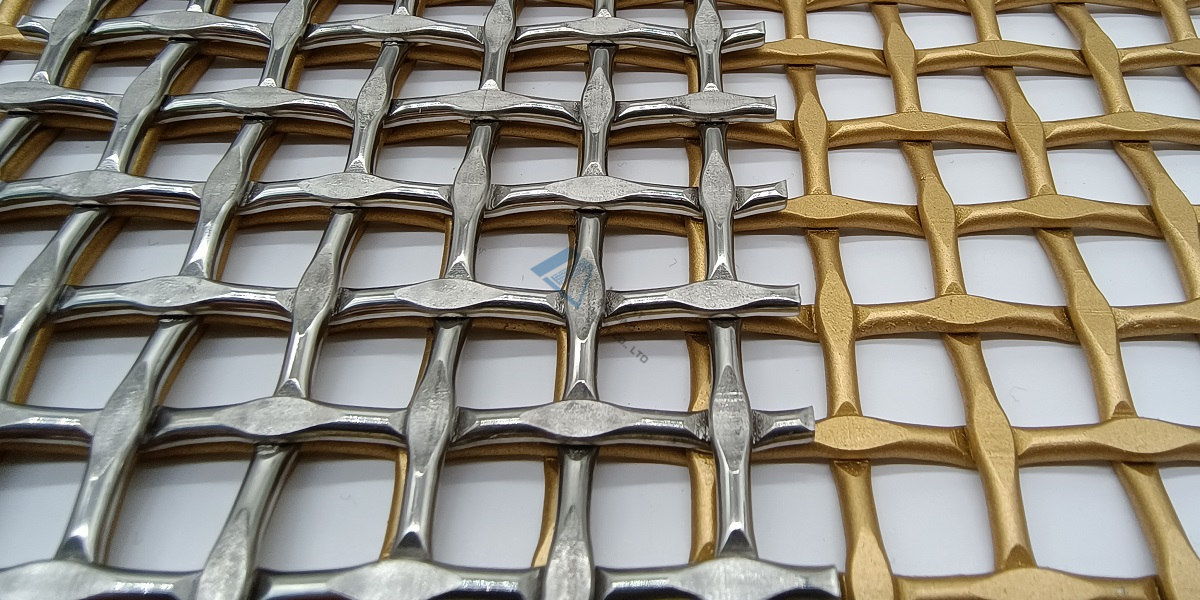

If you need to use it outdoors, please choose other finishes like PVDF coating, brass plating, or titanium plating. Or you can also use it in mill finish
which is the original stainless steel bright finish without any coating. In that case, the material has to be grade 316 stainless steel, as it is marine grade.
This architectural woven metal mesh is very suitable to be fencing infill panels, railing infill panels in shopping centers, commercial buildings, residential
indoor balustrades, and balcony balustrade systems.
Please refer to the following specification.
|
|
Overall thickness of the fabric |
3.3mm |
Opening Area |
59% |
Block out |
41% |
Privacy Rate |
41% |
Estimated Square Meter Weight |
8kg/㎡ |
Finish |
Golden painted. |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut, Diamond Cut |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
